Core Cutter Dolly And Hammer
Short info :
This is used for determination of in situ dry density of natural or compacted fine grained soil, free from aggregates. A cylindrical cutter is used to extract a sample of the soil with the help of a dolly and hammer. From the weight, density and the moisture, and dry density of the soil is ready calculated. The cylindrical core cutter, made of durable steel, measures 127.3 mm in length with an internal diameter of 100 mm, ensuring consistent and accurate sample collection. The accompanying steel dolly, featuring a 25 mm height and a lip for secure placement atop the core cutter, facilitates smooth extraction of core samples. Core Cutter of known volume is driven into the soil by a rammer.
Wizard Auto 250 KN - Automatic Compression Testing Machines
Description:
The Core Cutter with Dolly and Hammer set is essential for precise and efficient core sampling in construction and geological applications. Core Cutter Dolly with Hammer is a device used in construction and geotechnical drilling so as to remove cylindrical samples of soil or rock. It features a dolly that helps in holding the core sample and hammer for striking on the core cutter into ground. The core cutter is mounted on the dolly and assembled to its location for operation. The operator then lifts the hammer and hits it with some force making the core cutter to go deep into soil or rock. The dolly provides stability and handles the core sample throughout extraction.
Features:
- Sturdy Construction: They are constructed with long-wearing materials which can handle the pressure put on during core cutting and hammering, making them suitable for hostile work conditions.
- Adjustable Core Cutter: The dolly usually has an adjustable core cutter mechanism that gives the user flexibility to select different sizes of core samples depending on project needs.
- Efficient Core Extraction: The combination of an accurate core cutter and a hammer guarantees the accuracy in collecting samples along with testing it.
Standards:
- IS 2720 (PART XXIX)
- BS 1377-9
Specifications:

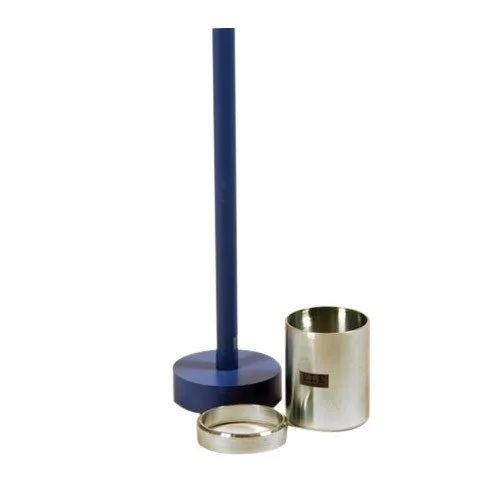

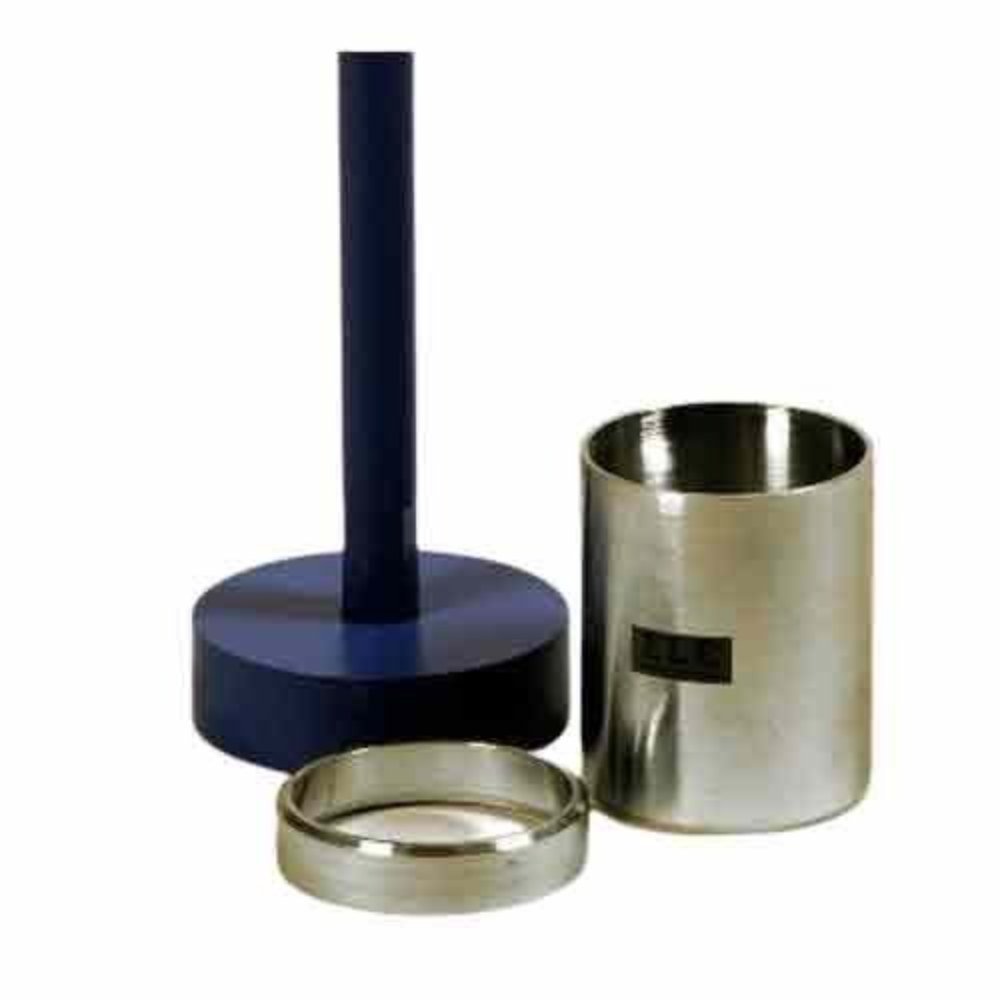

It consists of one each of the Cylindrical core cutter made of steel. 127.3 mm long and 100mm internal diameter. Steel Dolly, 25 mm high with a lip to enable it to be located on top of the core cutter. Rammer with detachable steel rod.
Products:
It consists one each of:
- Cylindrical core cutter made of steel
- 127.3 mm long and 100mm internal diameter
- Steel Dolley 25 mm high with a lip to enable it to be located on top of the core cutter
- Rammer with detachable steel rod
