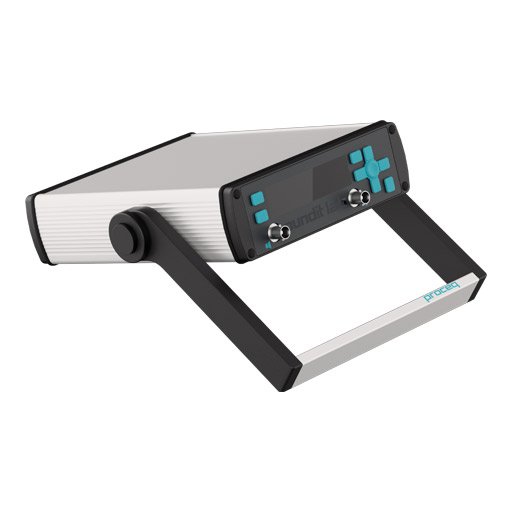

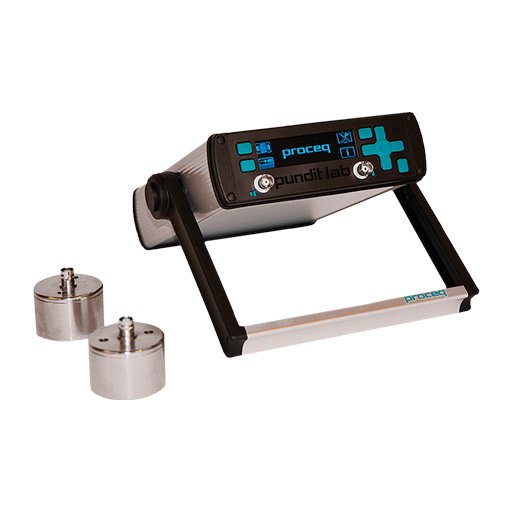

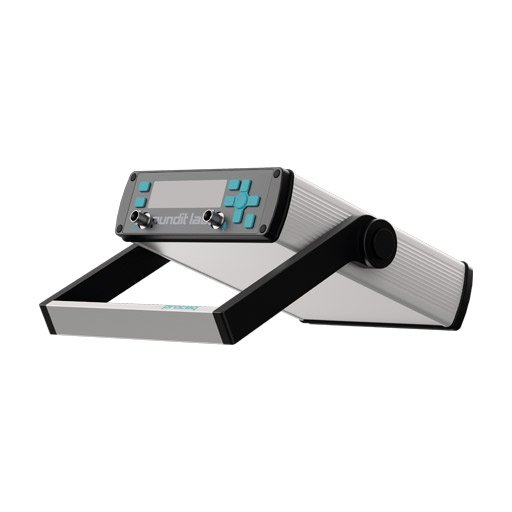

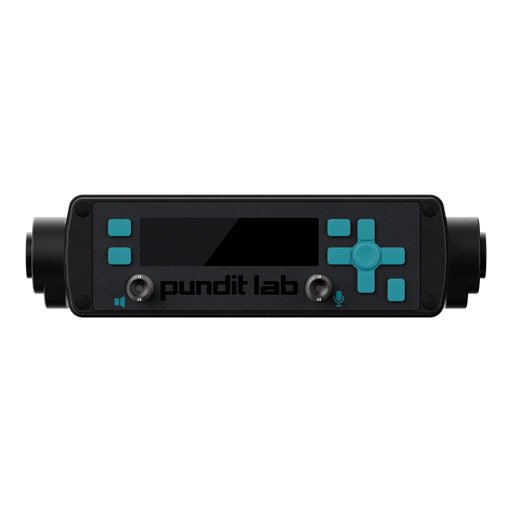

Proceq Pundit Lab (+) Ultrasonic Pulse Velocity Tester

Short info :

The Proceq – Pundit Lab Plus Ultrasonic Pulse Velocity Tester which is used to examine the quality of concrete. It features online data acquisition, waveform analysis and full remote control of all transmission parameters, along with the traditional transit.

  • Measuring pulse velocity
  • Measuring compressive strength(Pundit Lab+)
  • Waveform display for manual triggering
  • Data review list(Pundit Lab+)
  • A complete range from 24 kHz up to 500 kHz for various applications including:
  • Tx frequency, calibration, pulse width, temperature correction
  • Rx gain, units, receiver gain, transmission mode

MAKE: PROCEQ      |       MODEL: Pundit Lab (+)

Description:

The Proceq Pundit Lab is an ultrasonic pulse velocity (UPV) test instrument which is used to examine the quality of concrete. It features online data acquisition, waveform analysis and full remote control of all transmission parameters, along with the traditional transit.

The Proceq Pundit Lab+ offers additional features, such as the possibility to estimate compressive strength (also in combination with a rebound hammer value (SONREB method), a real time stamp for all measurements, a review list allowing readings to be checked on site without a computer and an integrated gain stage that makes an external amplifier redundant.

Time and pulse velocity measurement, the ultrasonic test equipment Pundit Lab offers path length measurement, perpendicular crack depth measurement and surface velocity measurement. Optimized pulse shaping gives greater transmission range at lower voltage levels. This, coupled with automated combination of the transmitter voltage and the receiver gain, ensures an optimum received signal level, guaranteeing accurate and stable measurements. An integrated waveform display allows manual triggering of the received waveform.
