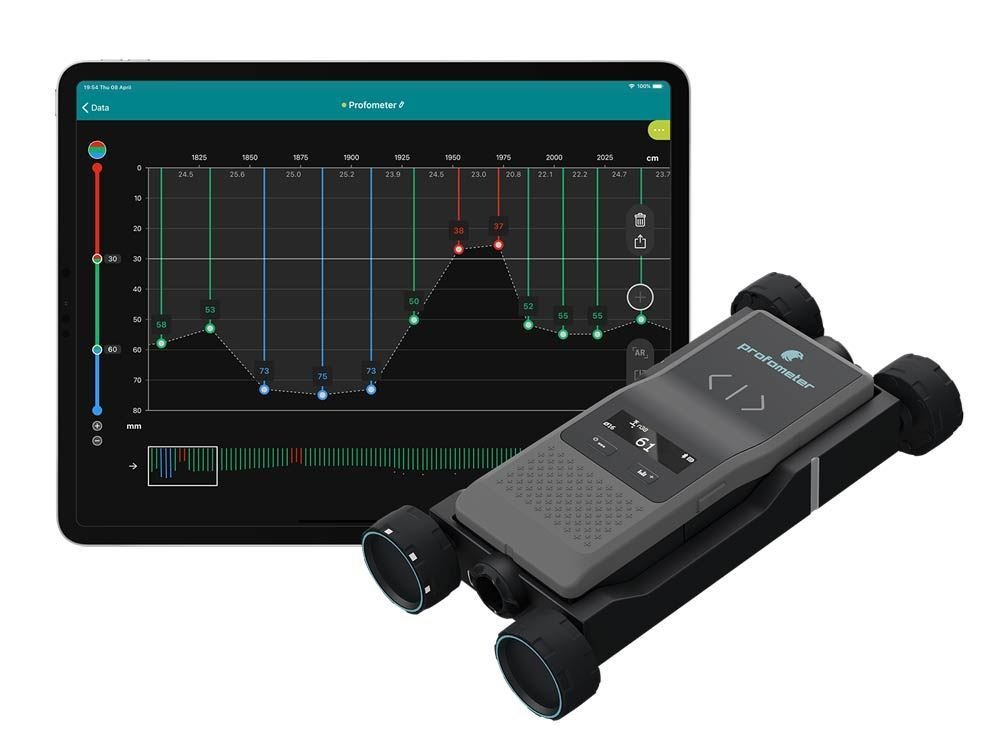

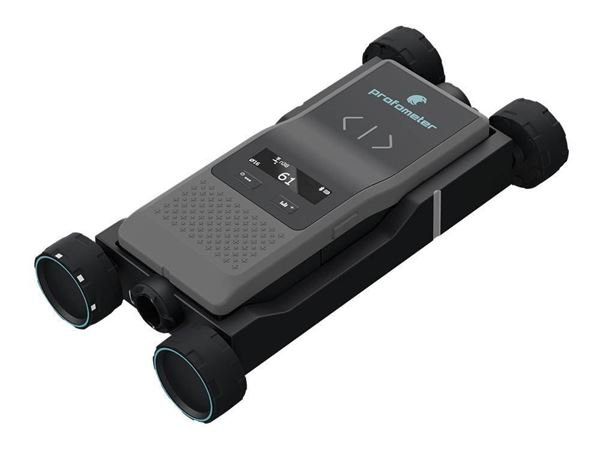

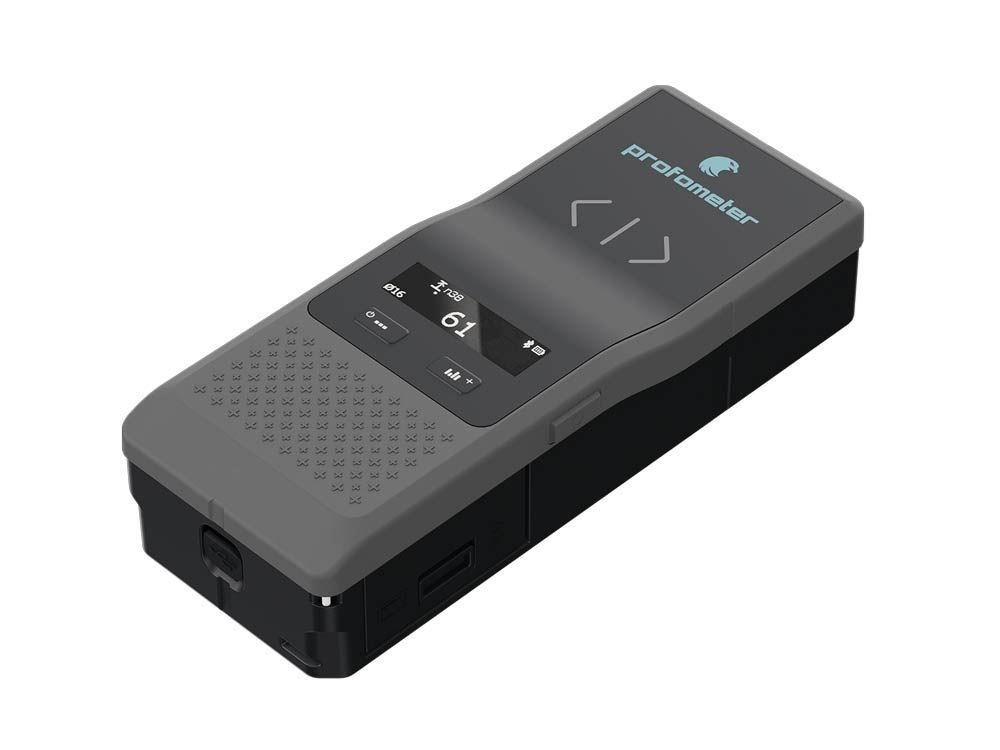

Profometer PM8000 Pro Rebar Diameter & Cover Meter wireless solution for spot measurements, line & area scanning. The cover meter for experts, from rebar detection to area scanning. Precise measurements with unique advanced visualization. The Profometer PM8000 Rebar Diameter & Cover Meters are used to locate rebars, measure the concrete cover of rebars, and estimate rebar diameters in concrete structures. The sensor can detect individual rebars and determine concrete cover at depths up to 7.3in (185mm), with cover accuracy of ±0.16in (4mm) or better. Bar diameters can be measured at depths up to 2.5in (63mm) with an accuracy of ± rebar diameter. The maximum size for an area scan is 107,000ft² (10,000m²), and linear scans can be performed for lengths up to 0.6mi (1km).

• Sophisticated data interpolation and intelligent auto-mode eliminate error margin.
• Compact, ultra-light-weight and fully wireless designed for use in rough environments
• Instant availability of data analytics and visualization in the field, data synchronization and collaboration

• CE marked, ultra-lightweight, and fully wireless sensor
• Intelligent auto-mode eliminates error margin
• Precise location and accurate dimensional measurements
• Sophisticated data processing and cloud-based reporting
• Instantly view data analytics and visualization in the field

• BS 1881, Part 204
• DGZfP B2
• DIN 1045
• SIA 262-1
• SN 505262
• SS 78-B4
• DBV Guidelines

• Technology: Eddy-current
• Connection: Wireless
• Cover Measuring Depth: Up to 185 mm / 7.3 in
• Cover Measuring Accuracy: +/-1 mm / 0.04 in to 4 mm /0.16 in depending on depth
• Rebar Diameter Measuring Depth: up to 63 mm / 2.5 in
• Rebar Diameter Measuring Accuracy: +/- rebar size
• Encoder Accuracy: +/- 0.5mm / 0.02 in + 0.5% of measured length
• Max Scanning Speed: 0.5m/s - 1.7 ft / s
• Max Line Scan Distance: 1km / 0.6 miles
• Max Area Scan: 10'000m2 / 107'000 ft2
• Display: High-contrast OLED screen
• Dimensions: 250 x 130 x 45 mm / 9.8 x 5.1 x 1.8 in (with cart) 190 x 75 x 45 mm / 7.5 x 3.0 x 1.8 in (without cart) Weight 690 g / 1.5 lb (with cart) 300 g / 0.7 lb (without cart)
• Battery: 2 x AA (NiMH) rechargeable or non-rechargeable, Removable, Flight-safe, 8 hours autonomy, USB-C power bank (not included)

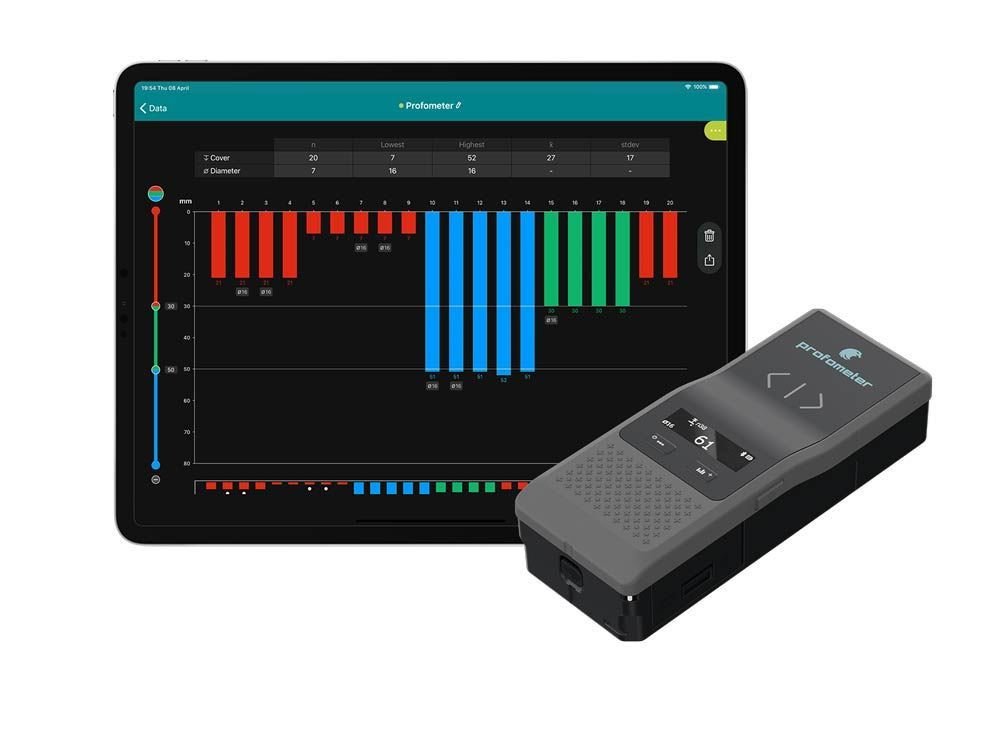

The advanced concrete cover meter, from concrete rebar detection to line scanning. Precise concrete rebar cover measurements and diameter estimation with great clarity.

•  Unrivalled precision thanks to a sophisticated data interpolation & intelligent auto-mode

•  Superior ergonomics with compact, ultra light-weight and fully wireless sensor

•  Unmatched productivity with instant availability of data analytics and visualization

Applications:

Quality control of new constructions / Durability & structural resistance assessment of exisiting concrete structures / Rebar location / Fire resistance assessment / Metal detection / Finding safe spots to drill / Minimum cover check
