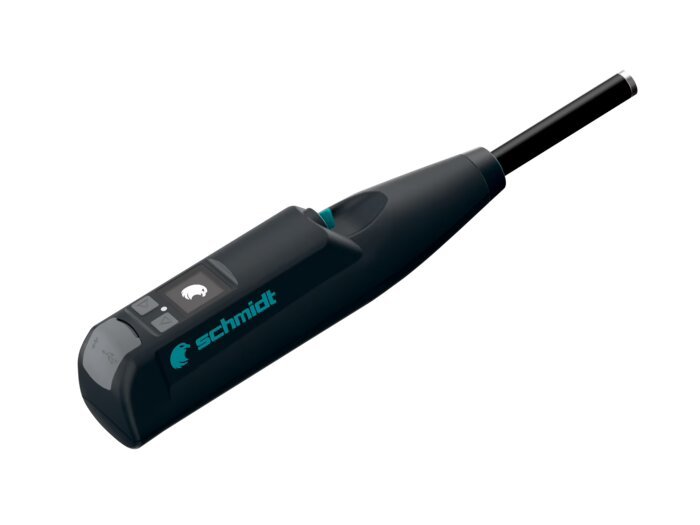

Proceq Rock Schmidt RS8000 Rebound Hammer
Short info :
- Dedicated design for rock testing applications
- Best in class correlations to unconfined compressive strength (UCS)
- Instant data back-up and collaboration features
Wizard Auto 250 KN - Automatic Compression Testing Machines
Description:
The unique optical Schmidt hammer designed specifically for rock testing
- High performance
Unique optical measurement system ensures low dispersion and maximum accuracy in comparison with classical hammers - Dedicated design
Swiss made hammers specifically designed for rock testing with multiple applications – UCS, E-modulus, weathering grade - Increased flexibility

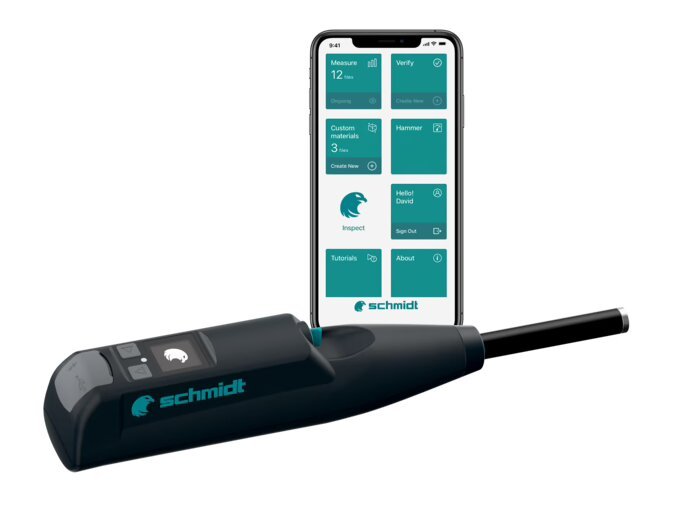

Work with the hammer alone, or using the mobile app for fast documentation of your measurements and secure sharing via Screening Eagle Workspace
Features:
- Correlation to unconfined compressive strength of rock
- Correlation to modulus of elasticity of rocks
- Prediction of weathering grades
- Classification of surfaces for drop testing
- Prediction of penetration rates for tunneling machines
Standards:
- ASTM D 5873 (Rock)
Specifications:
|
Specifications - Rock Schmidt App |
|
|
Mobile app |
Compatible with Apple® iOS devices (iOS 12 and later) Android 6.0 and higher |
|
Workflow features |
Voice read-out of each impact (only on iOS®) |
|
Verification features |
Software assisted verification on an anvil |
|
Workspace |
Screeningeagle.com - web based handling |
|
Languages |
English, German, Japanese, Chinese, Korean, Spanish, Portuguese, Italian, French, Russian |
|
Specifications - Instrument |
|
|
Measurement |
Automatic calculation of rebound value according to international standards |
|
Technology |
Optical rebound velocity quotient |
|
Key features |
Impact angle independent |
|
Impact energy |
N 2.207 Nm |
|
Display |
Analog & backlit digital (100 x 100 pixels, graphic) |
|
Connectivity |
Bluetooth® LE, USB for charging and updates |
|
Weight |
0.84 kg / 1.85 lbs |
|
Battery |
Standard AAA rechargeable |
|
Battery lifetime |
>20'000 impacts betwen charges |
|
Operating temperature |
0 to 50°C / 32 to 122°F |
|
Storage temperature |
-10 to 70°C / 14 to 158°F |
|
Operating humidity |
<95% RH, non-condensing |
Products:
- Dedicated design for rock testing applications
- Best in class correlations to unconfined compressive strength (UCS)
- Instant data back-up and collaboration features
Applications:
Correlation to unconfined compressive strength of rock / Correlation to modulus of elasticity of rocks / Prediction of weathering grades / Classification of surfaces for drop testing / Prediction of penetration rates for tunneling machines
