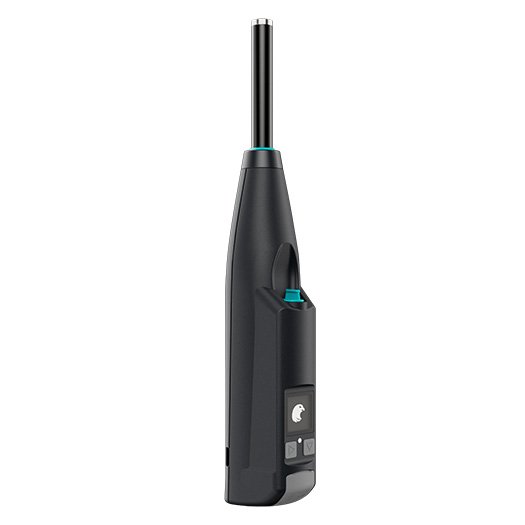

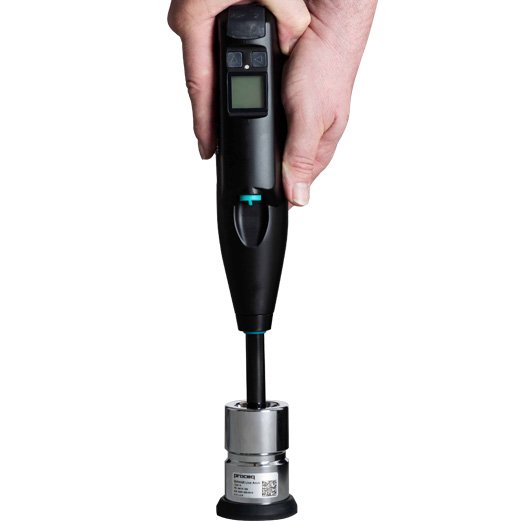

OS8200 concrete test hammer is a rebound hammer which has  long been the global benchmark for non-destructive compressive strength testing of concrete.

Rebound Hammer test on concrete is a Non-destructive testing method of concrete which provides a convenient and rapid indication of the compressive strength of the concrete.

The OS8200 Proceq Rebound hammer is integrated through a Schmidt mobile app that lets you annotate measurements with voice, photos and comments & generate reports instantly. One can easily share the generated report in a second. The Digital hammer can wirelessly connect to a bluetooth printer for direct print-out of test results.

In OS 8200, the output Q value brings greater accuracy at higher strengths as it is proven that  Q-value delivers more accurate correlations for custom material curves.

The Silver Schmidt hammer acquires the Q-value by measuring the velocity (V) of impact and of rebound immediately before and after the impact, Q-value need not be corrected for impact direction. Hence, no mechanical loss due to friction, of gauge , gravity etc occurs & it gives high accuracy output.

New Advance Model Proceq Silver Schmidt OS8200 is as accurate, reliable, and versatile as ever — and now, connected, thanks to its optical measurement technology paired with digital productivity features and user-friendly mobile apps.

• Fresh, Normal & High Strength concrete strength estimation
• Concrete uniformity testing
• Custom correlation to compressive strength
• Low strength (<5 Mpa) concrete testing
• In-situ rock testing on massive rock (Type N)
• Concrete testing on thin (less than 100 mm thick) samples (Type L)
• Rock testing on cores according to ASTM D5873 (Type L)
• Hardness testing of paper rolls (Type L)
• Compressive strength estimation; concrete: 10 to 70 N/mm2/ 1450 to 10152 psi (Type N)
• Screening of concrete to identify coring locations (Type N)
• Uniformity testing of concrete (Type N)
• Paper: Type L

• ASTM C 805
• EN 12504-2
• EN 13791
• ACI 228.1R
• RILEM TC-ISC

•  Instant report generation on the go

•  Best-in-class strength correlation

•  Fully assess an entire test region in less than 10 minutes

Applications:

Estimation of compressive strength of concrete / Mapping of concrete uniformity / Estimation of compressive strength of high strength concrete / Control of concrete curing for formwork removal
