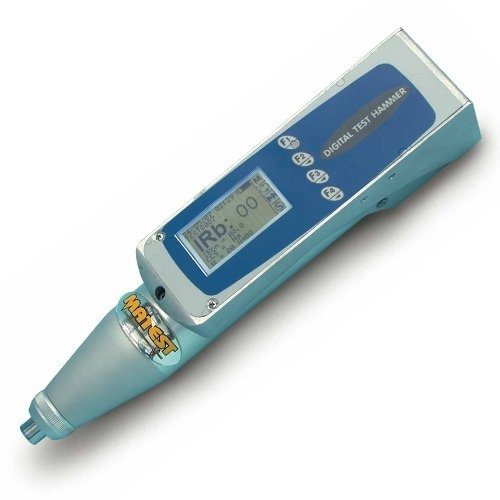

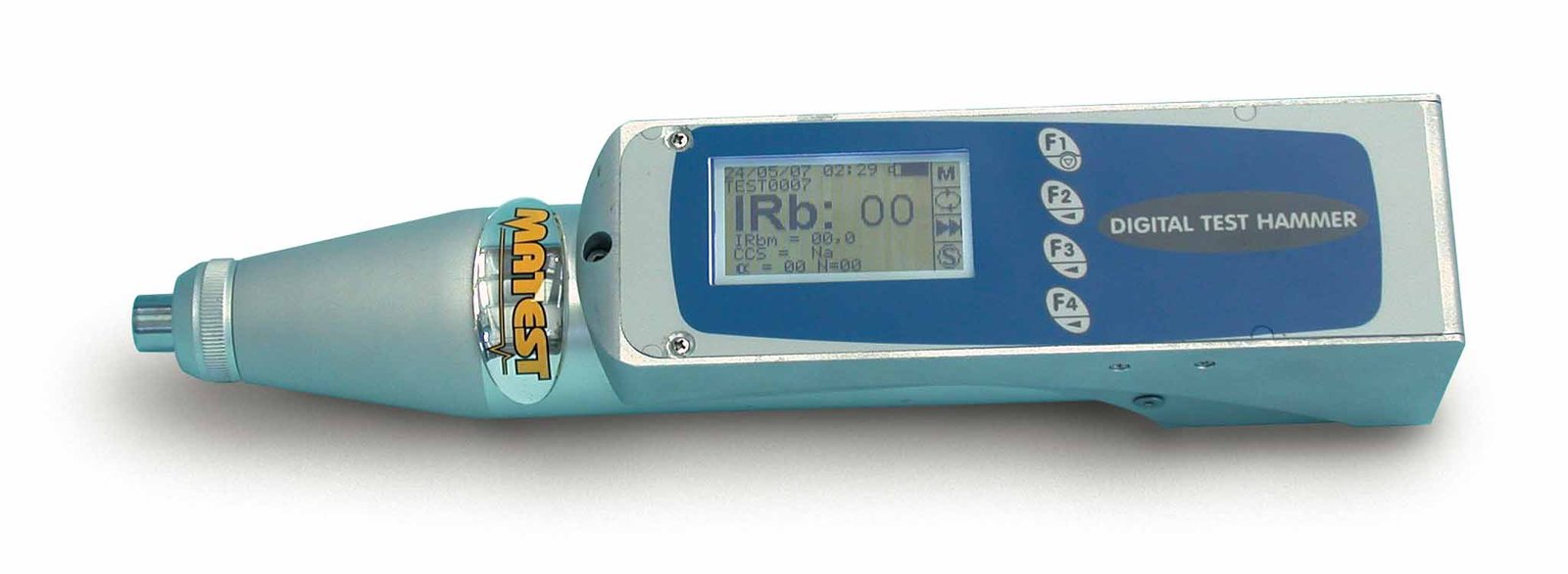

This digital concrete test hammer, entirely designed and manufactured by Matest with advanced technology, is capable of assessing concrete strength and detecting potential structural issues early on.

This capability enables the planning of preventive maintenance interventions before more severe damage occurs. By identifying areas in need of maintenance, it helps avoid the necessity of carrying out repairs across the entire structure. Additionally, conducting targeted preventive maintenance interventions reduces the amount of waste generated from demolitions and reconstructions.
The unit comprises the standard mechanical model C380, enhanced with an electronic transducer that measures rebound values and automatically provides results on a graphic display.

• Possibility to store, display on graphic LCD 64x124 and download data to PC over 1500 tests
• Automatic statistical processing and readings
• Automatic conversion of rebound index to equivalent compression strength in psi, N/mm2, kg/cm2
• High accuracy and resolution

• ASTM C805
• EN 12504:2

• Impact energy: 2.207 Joule (Nm)
• Measuring range: 10 - 120 N/mm² (MPa)
• Interface: USB
• Power source: 6 rechargeable batteries AA NiMh 2400mA/hour
• Battery life: 60 hours with automatic shutdown
• Operating temperature: -10°C +60°C

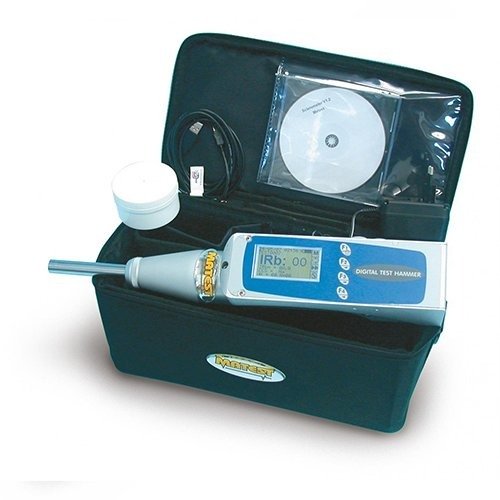

Supplied complete with data transfer software, data transfer USB
cable, battery charger, abrasive stone, carrying case.
Dimensions with case: 330x180x120 mm
Weight: 3 kg

• Shows index value
• Shows average index value
• Allows to select measuring system in N/mm2 (MPa) or Psi
• Shows the number of performed rebounds
• Shows date and time
• Identifies tested element
• Identifies automatically and shows rebound angle
• Shows battery life
