This tool measures the voltage changes associated with this phenomenon. It is primarily used for detecting rebar positions, distribution, orientation, protective layer thickness, and rebar diameter in concrete structures.

• Integrated design of the main unit and sensor, compact size for convenient and quick use.
• Utilizes high-power transmitting coils and multiple sets of small coils for higher accuracy and resolution.
• Employs high-precision grating sensors for more accurate scanning displacement and rebar spacing.
• Provides various scanning modes suitable for different measurement environments, including a standard scanning mode for point-to-point retesting to meet testing protocol requirements.
• Supports large and small range detection, with a scanning distance of up to 65m, offering more flexible data detection.
• Supports multiple rebar correction modes for more accurate test results.
• Supports both USB wired and Bluetooth wireless data transmission for convenient data uploading.
• Equipped with a 3.2-inch 65K color LCD display with higher resolution for better display effects. It also features a capacitive touchscreen for easier human-machine interaction.

• BS 1881, Part 204
• DGZfP B2
• DIN 1045
• SIA 262-1
• SN 505262
• SS 78-B4

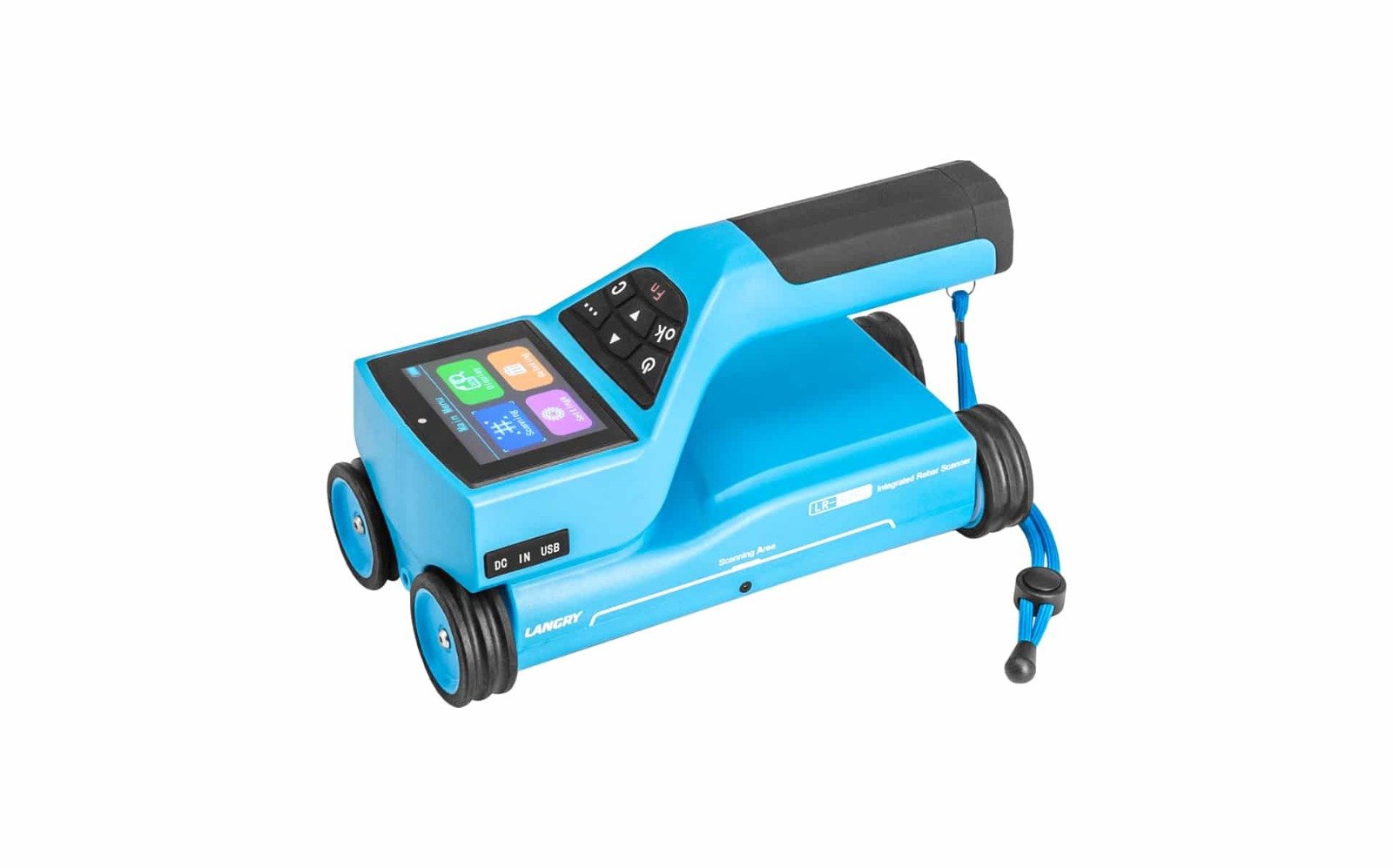

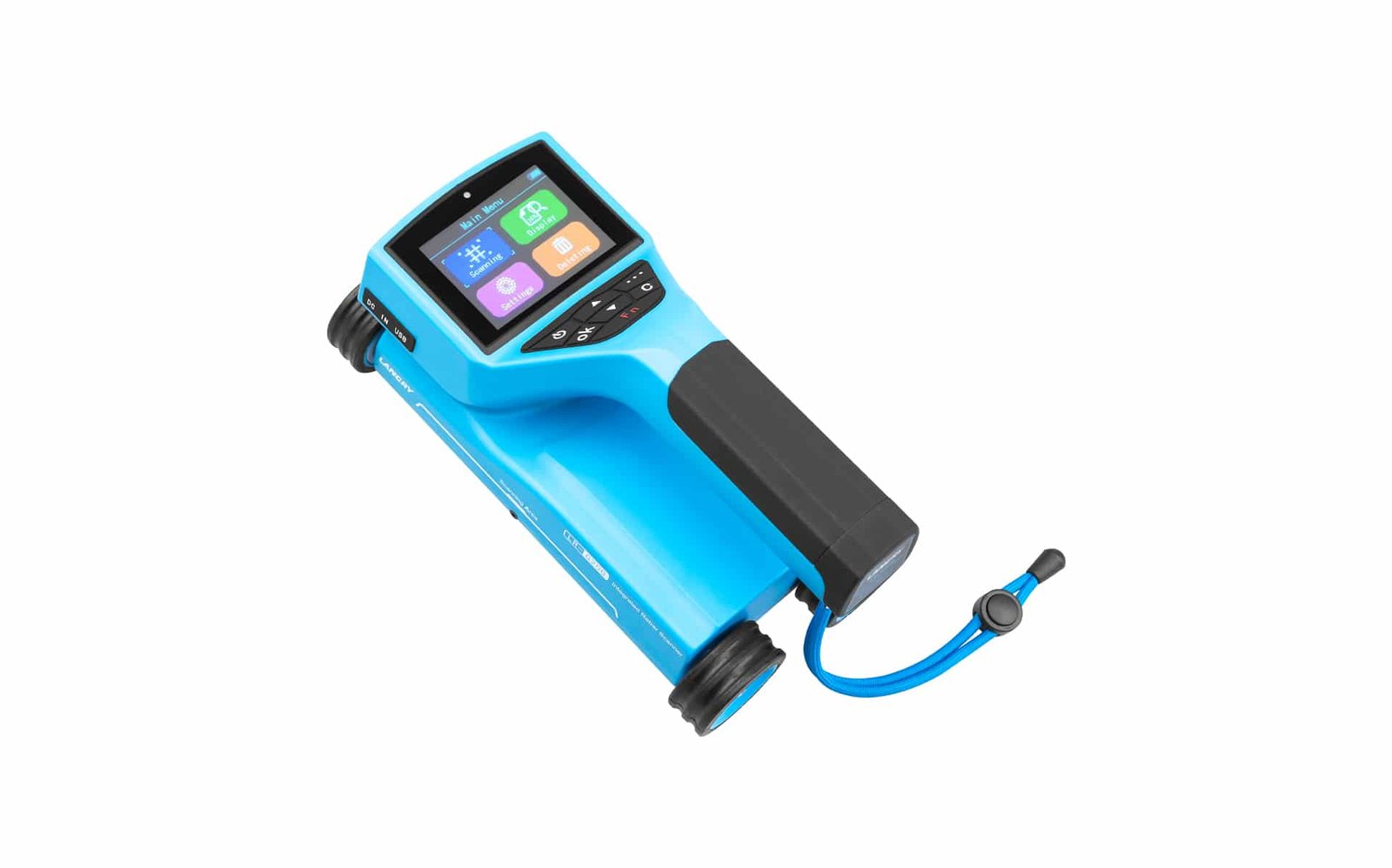

The LR-G200 integrated rebar detector utilizes a multi-coil layout, where coils are charged with timed electrical pulses to generate a magnetic field. When conductive materials enter the magnetic field, eddy currents are induced on their surfaces, resulting in a reverse magnetic field.

• Seamless integration for efficient rebar detection.
• High-speed scanning for rapid assessment.
• A user-friendly interface simplifies operation and data interpretation.

Applications :

The LANGRY Integrated Rebar Scanner LR-G200 is essential for precise and swift detection of rebars in concrete structures, optimizing construction, maintenance, and quality assurance processes with ease and accuracy.
