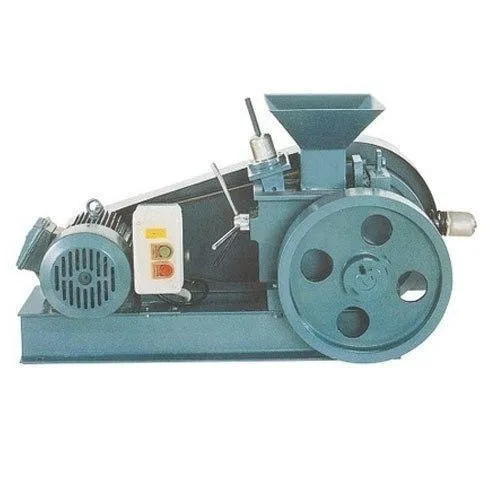

Pulveriser Test Machine is Designed for grinding materials to produce fine mesh samples Ideal for use in Cement and Chemical Industries.

• It is a self-contained grinder, with a rotary disc, having a planetary movement in a vertical plane.
• This feature gives added life to the moving parts and produces a sample of uniform fineness.
• Grinding is done between two discs, one of which is stationary and the other revolving eccentrically at high speed.
• The discs are made from heat treated mechanized metal.
• With the help of a convenient hand wheel, the size of the final product can be adjusted.
• This can be done, even while the machine is in operation.
• A self-locking device holds the hinged grinding chamber in place and affords easy and quick access to it, for removal of ground samples & for cleaning.
• The Pulverizer has a capacity of reducing about 50 gram of Quartz type sample to 100 mesh in about minute.
• The Pulverizer is supplied complete with a 3 H.P. Motor, a starter, “V” Belt pulley, drive and mounting wires for 440 Volts, 3 phase A.C. 50 Hz.

• As per Indian Standard.

Designed for grinding materials to produce fine mesh samples Ideal for use in Cement and Chemical Industries:-

• Self contained grinder with a rotating disc having planetary movement in vertical plane
• Reduces about 450g quartz type material to 100 mesh in one minute
• Dia. of grinding wheel: 175mm
• Material of grinding wheel: High Carbon Steel having 53-60 HRC hardness
• Input of material: 6mm
• Suitable for operation with 440V, Three Phase, A.C. supply

Designed for grinding materials to produce fine mesh samples Ideal for use in Cement and Chemical Industries:-

• Self contained grinder with a rotating disc having planetary movement in vertical plane
• Reduces about 450g quartz type material to 100 mesh in one minute
• Dia. of grinding wheel: 175mm
• Material of grinding wheel: High Carbon Steel having 53-60 HRC hardness
• Input of material: 6mm
• Suitable for operation with 440V, Three Phase, A.C. supply
