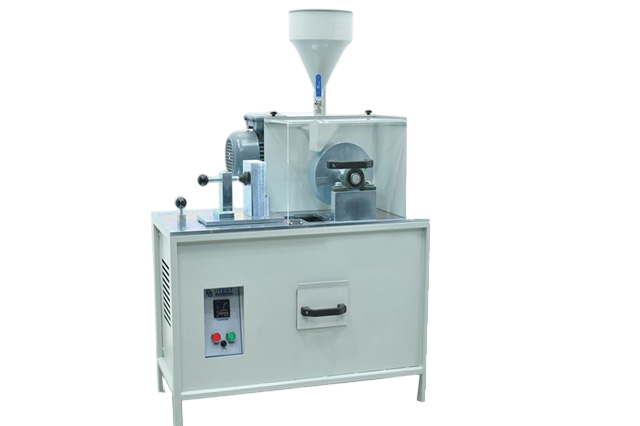

A Wide Wheel Abrasion Testing Machine is a specialized apparatus used to evaluate the abrasion resistance of materials, particularly aggregates, minerals, concrete, and ceramics. The machine determines how well a material can withstand surface wear caused by friction or rubbing against another surface, simulating real-world mechanical wear conditions.

Heavy-Duty Frame Construction

• Built with rigid steel or cast iron for vibration-free operation and long service life.

Wide Abrasive Wheel

• Precisely machined and hardened steel wheel (typically 300–500 mm wide).
• Ensures consistent abrasive surface contact.

Adjustable Load Mechanism

• Allows the operator to apply varying loads (typically up to 500 N or more) to simulate different wear conditions.

Variable Speed Drive

• Motor with adjustable RPM (commonly between 30–100 RPM) to suit different test standards.

• EN 1338
• EN 1339
• EN 1340

Technical Specifications:

• Abrasive Wheel
• Specimen Holder/Fixture
• Counterweight System
• Digital Revolution Counter
• Loading Weights
• Dust Collection Tray
• Sample Preparation Tools
• Cleaning Brush
