A Deval Attrition Tester is a machine used to determine the resistance of granular materials, like aggregates in road construction, to wear and abrasion. It measures the percentage of material loss due to impact and friction. The test involves rotating the material with abrasive charges within cylinders, and then measuring the remaining material to determine the wear resistance.

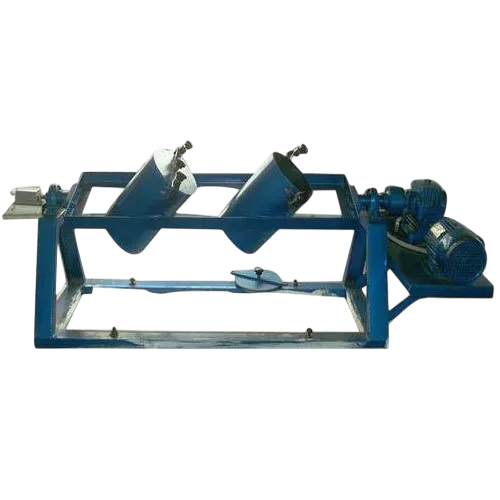

It consists of two hollow cylinders closed at one end and provided with Fitting covers at the either end. These cylinders are mounted an a shaft at angle of 300 with the axis of rotation of the shaft. The shaft rotates at 30-33 RPM. Through a reduction gear operated by a motor and is provided with a revolution counter. Complete with Abrasive Charge consisting of 12 Nos. Hardened steel Balls of 48mm dia. Suitable for operation on 440 Volts, Three Phase, 50 Cycles, A.C. supply.

• ASTM D2-33
• IS:2386 (PART IV)

It consists of two hollow cylinders closed at one end and provided with Fitting covers at the either end. These cylinders are mounted an a shaft at angle of 300 with the axis of rotation of the shaft. The shaft rotates at 30-33 RPM. Through a reduction gear operated by a motor and is provided with a revolution counter. Complete with Abrasive Charge consisting of 12 Nos. Hardened steel Balls of 48mm dia. Suitable for operation on 440 Volts, Three Phase, 50 Cycles, A.C. supply.

• Digital Preset Counter can be provided at an Extra Cost.
