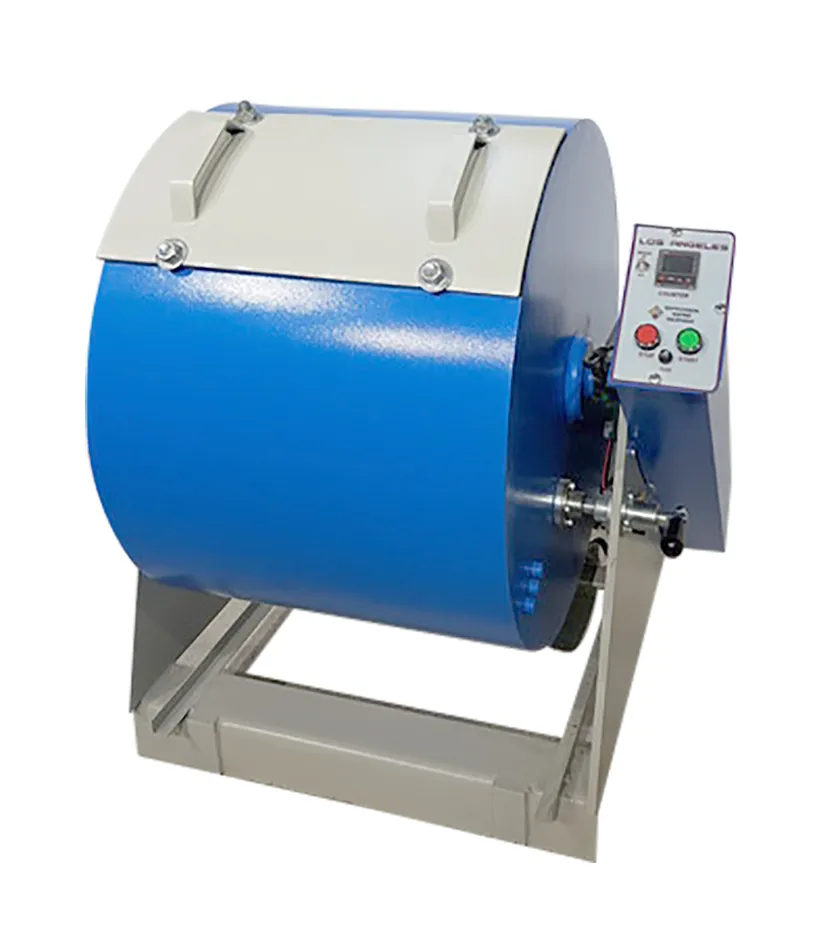

Digital Los Angeles Abrasion Testing Machine
Short info :
This machine is for determining the resistance to wear off small size coarse aggregates and crushed rock. The machine consists of a hollow cylinder, mounted on a sturdy frame on ball bearings. A detachable shelf which extends throughout the inside length of the drum catches the abrasive charge and does not allow it to fall on the cover. The drum is rotated at a speed of 30-33 rpm by an electric motor through a heavy duty reduction gear. Supplied complete with a tray for collection of the material
Wizard Auto 250 KN - Automatic Compression Testing Machines
Description:
This machine is for determining the resistance to wear off small size coarse aggregates and crushed rock. The machine consists of a hollow cylinder, mounted on a sturdy frame on ball bearings. A detachable shelf which extends throughout the inside length of the drum catches the abrasive charge and does not allow it to fall on the cover. The drum is rotated at a speed of 30-33 rpm by an electric motor through a heavy duty reduction gear. Supplied complete with a tray for collection of the material
Features:
The machine consists of a hollow cylinder mounted horizontally on a study frame on ball bearings. There is an opening which can be closed with a dust tight cover to facilitate charging and discharging the drum with the material under test. A detachable shelf which extends throughout the inside length of the drum which catches the abrasive charge and does not allow it to fall on the cover. The drum is rotated by an electric motor through a heavy reduction gear at a speed of 30-33 R.P.M. A revolution counter is fitted to the frame. A tray is supplied for collection of the material at the end of the test. Complete with Abrasive Charge consisting of a set of Twelve hardened steel balls, approximately 48mm dia. Suitable for operation on 440 V, 3 Phase, 50 cycles, A.C. Supply.
Standards:
- ASTM - C131
Specifications:
The machine consists of a hollow cylinder mounted horizontally on a study frame on ball bearings. There is an opening which can be closed with a dust tight cover to facilitate charging and discharging the drum with the material under test. A detachable shelf which extends throughout the inside length of the drum which catches the abrasive charge and does not allow it to fall on the cover. The drum is rotated by an electric motor through a heavy reduction gear at a speed of 30-33 R.P.M. A revolution counter is fitted to the frame. A tray is supplied for collection of the material at the end of the test. Complete with Abrasive Charge consisting of a set of Twelve hardened steel balls, approximately 48mm dia. Suitable for operation on 440 V, 3 Phase, 50 cycles, A.C. Supply.
Products:
- A tray is supplied for collection of the material at the end of the test.
- Complete with Abrasive Charge consisting of a set of Twelve hardened steel balls, approximately 48mm dia.
