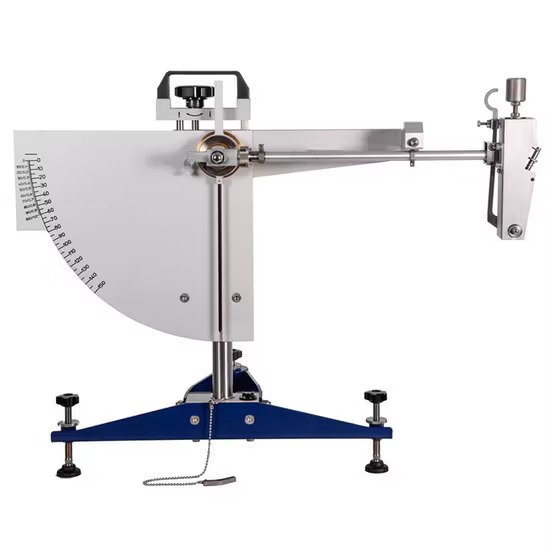

The Portable Skid Resistance and Friction Tester is a direct reading instrument that provides the measure of friction between a skidding tire and wet road/ runway surface. It also determines the friction of asphalt and flooring materials.

The Instrument facilitates a road or runway engineer, based on numerical scientific results, information on whether a measure needs to be taken to reduce skidding. The Portable Skid Resistance Tester has been used all over the world for many years and is probably the most convenient equipment to check skid resistance.

Used for the measurement of surface friction properties, the apparatus is suitable for both site and laboratory applications and for polished stone value tests using curved specimens from accelerated polishing tests:

•  Rocker weight: 1500 +/- 30 g
•  Distance between rocking centre & centre of gravity: 410 +/- 5 mm
•  Positive static pressure on pavement: 22.2 +/-0.5 kn
•  6 rubber slider and base plate dimension (mm): 700×360×70

• EN 13036-4
• BS EN1097-8:2000
• ASTM E303-93
• AS/NZS 4586:1999

Used for the measurement of surface friction properties, the apparatus is suitable for both site and laboratory applications and for polished stone value tests using curved specimens from accelerated polishing tests:

•  Rocker weight: 1500 +/- 30 g
•  Distance between rocking centre & centre of gravity: 410 +/- 5 mm
•  Positive static pressure on pavement: 22.2 +/-0.5 kn
•  6 rubber slider and base plate dimension (mm): 700×360×70

The equipment is supplied with:

•  Additional scale for tests on polished stone value specimens
•  6 rubber sliders for site use, complete with conformity certificate
•  Thermometer -10 to +110°c for surface temperature measurement
•  1 litre washing bottle, for surface wetting
•  Tool set with case, for machine assembly
•  Rule for sliding length verification
