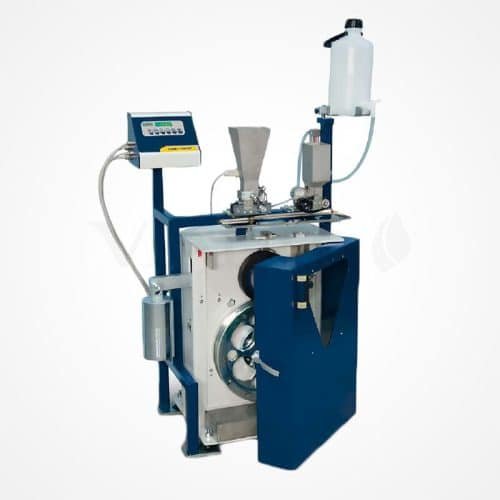

Accelerated Polishing Machine
Short info :
The accelerated polishing machine polishes samples of aggregates, simulating actual road conditions, and is used in conjunction with the portable skid resistance tester to determine the polished stone value for aggregates used in road surfaces, and gives a measure of the resistance to skidding. Fourteen specimens are clamped around the "road wheel" of the polishing machine, and subjected to two stages of polishing by a loaded rubber tire. First by corn emery, and secondly by emery flour. Use of the accelerated polishing machine and the skid resistance tester in road construction has had a major influence in reduction of accidents.
Wizard Auto 250 KN - Automatic Compression Testing Machines
Description:
The accelerated polishing machine polishes samples of aggregates, simulating actual road conditions, and is used in conjunction with the portable skid resistance tester to determine the polished stone value for aggregates used in road surfaces, and gives a measure of the resistance to skidding. Fourteen specimens are clamped around the "road wheel" of the polishing machine, and subjected to two stages of polishing by a loaded rubber tire. First by corn emery, and secondly by emery flour. Use of the accelerated polishing machine and the skid resistance tester in road construction has had a major influence in reduction of accidents.
Features:
- High ground steel main spindle running in precision sealed ball bearings additionally protected by a labyrinth seal spindle axially loaded to eliminate end play
- Adjustable 3 phase motor speed control with adjustable timing belt drive, reducing power consumption and improves control
- Inverter drive to motor for precise speed control
- Digital display preset timer and revolution counter
- Robust welded steel mainframe, standing on adjustable pads
- Specimens manufactured and easily removed from precision machined moulds
- 14 Specimens located on ‘Road Wheel’ by rubber rings and held by simple side fixing
- Water gravity fed from high level tank through calibrated flow meter
- Used abrasive and water collected in easily removable tray
- Loaded tyre raised and lowered to the running surface by mechanical lifting device
- Protection by covers and guards may be easily removed for maintenance
Standards:
- As per IS Standard.
Specifications:
- High ground steel main spindle running in precision sealed ball bearings additionally protected by a labyrinth seal spindle axially loaded to eliminate end play
- Adjustable 3 phase motor speed control with adjustable timing belt drive, reducing power consumption and improves control
- Inverter drive to motor for precise speed control
- Digital display preset timer and revolution counter
- Robust welded steel mainframe, standing on adjustable pads
- Specimens manufactured and easily removed from precision machined moulds
- 14 Specimens located on ‘Road Wheel’ by rubber rings and held by simple side fixing
- Water gravity fed from high level tank through calibrated flow meter
- Used abrasive and water collected in easily removable tray
- Loaded tyre raised and lowered to the running surface by mechanical lifting device
- Protection by covers and guards may be easily removed for maintenance
Products:
- Road Wheel Speed: 320 ± 5 rev min -1
- Tyred Wheel Set Diameter mm: 200 ± 3
- Tyred Wheel Set Width mm: 38 ± 2
- Tyred Wheel Hardness: (69 ± 3) mm IRHD
- Applied Load on the Wheel: (725 ± 10) Newton
- Electrical Supply: 230v / 110v. 50/60 Hz Single Phase 13 amp
- Dimensions mm (WxDxH): 810 x 790 x 1230
- Water Tank Height cm: 155
- Palletised Dimensions mm (WxDxH): 1200 x 800 x 1280
- Weight (max) Kg: 210
