Specific Gravity and Buoyancy Balance density of hardened concrete specimens such as cubes and cylinders can be quickly and accurately determined using a Buoyancy Balance.

The balance will be with under hook weighing arrangement and will be mounted on suitable table to facilitate the test. The Water tight container will be mounted on a mechanical jack, which will facilitate the up?down movement of the container for weight in air and water.

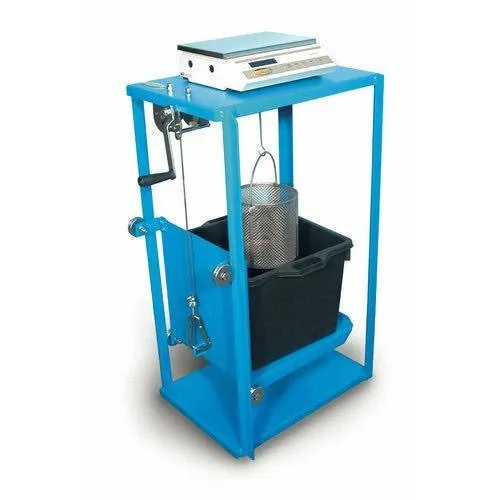

Specific Gravity Frame is used in conjunction with a suitable electronic balance for specific gravity determination of fresh and hardened concrete and aggregates. The buoyancy balance system consists of a rigid support frame, incorporating a water tank mounted on a platform. A mechanical lifting device is used to raise the water tank through the frame height immersing the specimen suspended below the balance. The balance supplied may also be used as a standard weighing device, thus providing a versatile and comprehensive weighing system in the laboratory

• EN 12390-7
• BS 1881:114
• IS:2386 (Part III)

Specific Gravity Frame is used in conjunction with a suitable electronic balance for specific gravity determination of fresh and hardened concrete and aggregates. The buoyancy balance system consists of a rigid support frame, incorporating a water tank mounted on a platform. A mechanical lifting device is used to raise the water tank through the frame height immersing the specimen suspended below the balance. The balance supplied may also be used as a standard weighing device, thus providing a versatile and comprehensive weighing system in the laboratory

• Electronic balance, capacity 15 kg. Least Count 0.5-gram, provision is made in this balance to suspend density basket under material pan. This balance is mounted on an angle iron frame stand. 1 No
• Density basket 200 mm diameter x 200 mm height 3.35 mm. 1 No
• GI Tray of area not less than 450 cm sq. 1 no.
• Absorbent cloths 75cm x 45cm. 2 Nos.
