Structure:

• Consists of a flat or cylindrical frame that holds a metal or plastic mesh with regularly spaced openings.
• Openings (or apertures) are sized according to the material being sorted (measured in millimetres or microns).

Function:

• Materials are poured onto the sieve.
• Smaller particles pass through the openings, while larger particles remain on top.
• Multiple sieves with different mesh sizes can be stacked to sort materials into various size fractions.

Structure:

• Consists of a flat or cylindrical frame that holds a metal or plastic mesh with regularly spaced openings.
• Openings (or apertures) are sized according to the material being sorted (measured in millimetres or microns).

Function:

• Materials are poured onto the sieve.
• Smaller particles pass through the openings, while larger particles remain on top.
• Multiple sieves with different mesh sizes can be stacked to sort materials into various size fractions.

• BS 812-105.1
• EN 933-3
• NF P18-561
• UNI 8520-18
• NLT 354

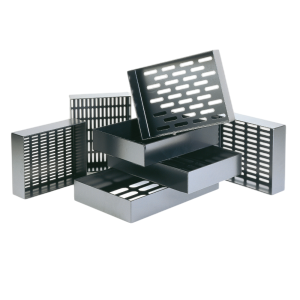

• For determination of particle shape Flakiness Index & Elongation of Aggregates are suitable only for hand sieving these are made using aluminum frames and stainless-steel rods of 5 mm Dia.
• Size slot width 50.0, 40.0, 31.5, 25.0, 20.0, 16.0, 12.5, 10.0, 8.00, 6.30, 5.00, 4.00, 3.15, and 2.50 mm (set of 14 pcs).

• For determination of particle shape Flakiness Index & Elongation of Aggregates are suitable only for hand sieving these are made using aluminum frames and stainless-steel rods of 5 mm Dia.
• Size slot width 50.0, 40.0, 31.5, 25.0, 20.0, 16.0, 12.5, 10.0, 8.00, 6.30, 5.00, 4.00, 3.15, and 2.50 mm (set of 14 pcs).
