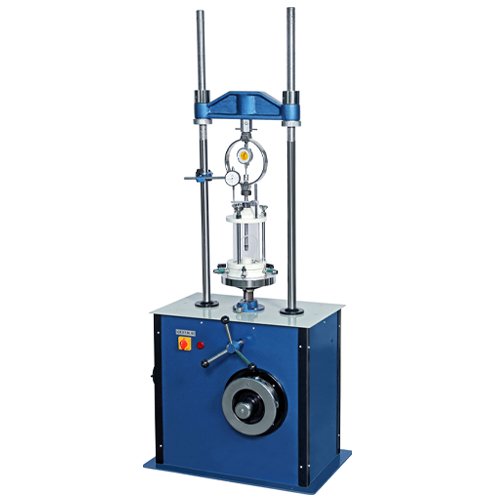

The Triaxial Cell Test Apparatus with 30-Speed Control is a geotechnical testing device used to determine the mechanical properties of soil, particularly shear strength, cohesion, and angle of internal friction under controlled stress conditions.

• 30-Speed Control System: Offers high-resolution adjustment of axial strain rates, allowing for a wide range of testing speeds to simulate various field conditions, from very slow consolidation tests to faster loading scenarios.
• Pressure Chamber (Triaxial Cell): A transparent, high-strength acrylic or metal cell houses the soil sample, allowing confining pressure to be applied uniformly via fluid.
• Loading Frame: Precision motor-driven loading mechanism for applying vertical stress with high accuracy.
• Specimen Dimensions: Typically supports standard sample sizes like 38 mm diameter × 76 mm height and others.
• Measurement Systems: Equipped with load cells, displacement transducers (LVDTs), and pressure transducers for accurate measurement of load, deformation, and pore pressure.
• Pore Pressure and Volume Change Monitoring: Compatible with systems for measuring and controlling pore water pressures and volume changes during CU and CD tests.

• IS: 2720 Part 11 & Part 12
• ASTM D2850
• ASTM D4767
• BS 1377

General

• Test Types Supported: UU (Unconsolidated Undrained), CU (Consolidated Undrained), CD (Consolidated Drained)
• Applicable Standards: ASTM D2850, ASTM D4767, BS 1377, IS 2720 Part XII

Triaxial Cell

• Specimen Size Compatibility: 38 mm × 76 mm (standard); adaptors available for 50 mm, 70 mm, 100 mm specimens
• Confining Pressure Range: 0–1000 kPa (higher capacities optional)
• Material: High-strength acrylic cylinder with anodized aluminum base/top cap
• Ports: Inlet/outlet for pore pressure, cell pressure, and back pressure

Load Frame

• Type: Motorized loading frame with digital control
• Speed Range: 30 speeds; typically, 0.00001 mm/min to 15 mm/min
• Max Vertical Load Capacity: 50 kN (optional: 10–100 kN ranges)
• Platen Travel (Stroke): 100 mm or more
• Resolution: 0.001 mm or better

• Top loading pad, Perspex, 38mm, 50mm, 75mm, 100mm, 150mm & 200mm
• Plain Perspex disc 38mm dia x 6mm thick,38mm, 50mm, 75mm, 100mm, 150mm & 200mm
• Porous Stone 38mm dia x 6mm thick,38mm, 50mm, 75mm, 100mm, 150mm & 200mm
• Sheath Stretcher for DIA 38mm, 50mm, 75mm, 100mm, 150mm & 200mm specimen
• Stand former for 38mm, 50mm, 75mm, 100mm, 150mm & 200mm dia
• Rubber Sheath for 38mm, 50mm, 75mm, 100mm, 150mm & 200mm dia specimen
• Drainage tube for 38mm, 50mm, 75mm, 100mm, 150mm & 200mm
• ‘O’ rings for 38mm, 50mm, 75mm, 100mm, 150mm & 200mm specimen
• Brass pedestal 38mm, 50mm, 75mm, 100mm, 150mm & 200mm dia
• Split Mould, 38mm dia x 76mm long
