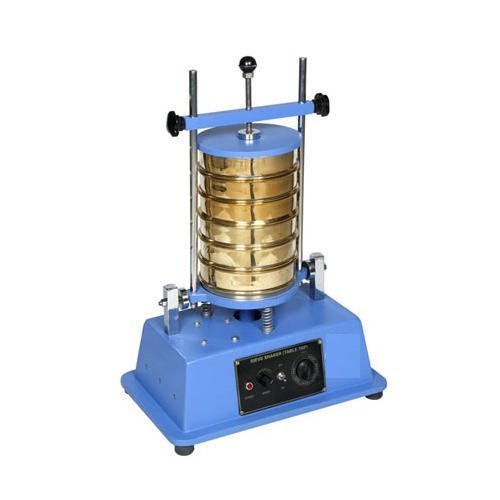

The Vibratory Sieve Shaker offers everything you need for the fast determination of quantitative particle size distribution in the laboratory. As a shaking sieve system with an electromagnetic drive oscillates the sieve stack into regulated vertical oscillations and is the ideal solution for sieving sample quantities up to 2 kg and a measurement range from 5 μm to 63 mm. This is low-noise, robust, and long-lasting. Perfect for quantitative particle size analysis of solids and suspensions of all kinds through dry or wet sieving with woven test sieves or micro precision sieving.

• Application-specific design.
• Long working life.
• High efficiency.
• It can be used for both dry and wet applications.

• As per IS Standard.

• Carrying up to 7 to 8 Sieves of 200mm diameter Sieves.
• The Shaker is driven by HP motor through a reduction gear immersed in oil. The sieve table dies not to rotate but is inclined from the vertical axis and the Direction of inclination changes progressively in a clockwise direction.
• If the stop pin below the table is removed.
• The shaker can have a rotary motion.
• There is a pair of rods and a holder are supplied.
• The holder can be fixed on the top of the upper cycles.
• Sizes: 200mm, 300mm, 450mm dia.

• Sieve 200mm Dia available at extra cost.
