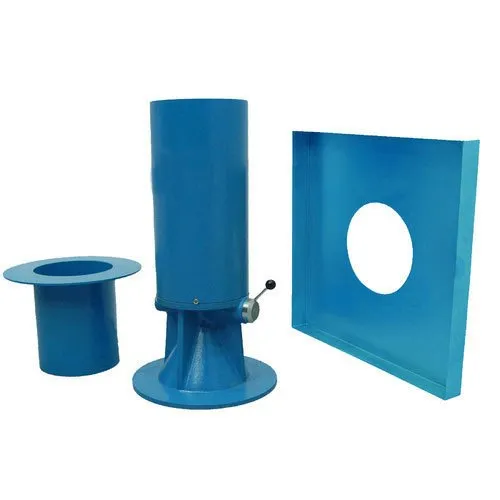

The soil testing equipment is used for determination of the dry density of compact, fine, medium grained soils and for layers not exceeding 50cm thickness. A circular hole is dug into the ground, all the soil from within it collected, weighed and dried, and the hole back filled with a standard uniform sand or fine gravel, poured from a calibrated container for calculating the volume of hole. The complete apparatus consists of a Sand Pouring Cylinder fitted with Conical funnel and Shutter, Cylindrical Calibration Container, and a Metal tray with a central hole.

The soil testing equipment is used for determination of the dry density of compact, fine, medium grained soils and for layers not exceeding 50cm thickness. A circular hole is dug into the ground, all the soil from within it collected, weighed and dried, and the hole back filled with a standard uniform sand or fine gravel, poured from a calibrated container for calculating the volume of hole. The complete apparatus consists of a Sand Pouring Cylinder fitted with Conical funnel and Shutter, Cylindrical Calibration Container, and a Metal tray with a central hole.

• IS:2720 (Part XXVIII)

Sand Pouring Cylinder (Small)

The apparatus is suitable for field density estimation of fine and medium grained soils, as per IS:2720 (Part XXVIII). It consists of:

• Sand Pouring Cylinder 115 mm internal dia with conical funnel and shutter.
• Calibrating Container, 100 mm inner dia and 150 mm deep with flange 50 mm wide.
• Metal tray 300mm square x 40 mm deep with a 100mm dia hole at the centre.

Sand Pouring Cylinder (Medium)

The apparatus is suitable for estimation of field density of fine, medium and coarse-grained soils, as per IS:2720 (part XXVIII) and consists of: -

• Sand Pouring Cylinder, 152 mm internal dia, with conical funnel and shutter.
• Calibrating container 150 mm inner dia x 200 mm high with 75 mm wide flange.
• Metal tray 450 mm square x 50 mm deep with a 150 mm dia hole at the centre.

Sand Pouring Cylinder (Large)

The apparatus is suitable for estimation of field density of fine, medium and coarse-grained soils, as per IS:2720 (part XXVIII) and consists of: -

• Sand Pouring Cylinder, 215 mm internal dia, with conical funnel and shutter.
• Calibrating container 200 mm inner dia x 250 mm high with 75 mm wide flange.
• Metal tray 450 mm square x 50 mm deep with a 200 mm dia hole at the centre.

• Chisel at Extra Cost
