Proctor Penetrometer (Spring Type)
Short info :
Proctor needles are used for quick evaluation of maximum soil density in the field. Standard Compaction curves showing moisture contents versus densities are drawn in laboratory using standard compaction method and penetration of the proctor needles are correlated. Proctor needles are also known as Proctor Penetrometer.
Wizard Auto 250 KN - Automatic Compression Testing Machines
Description:

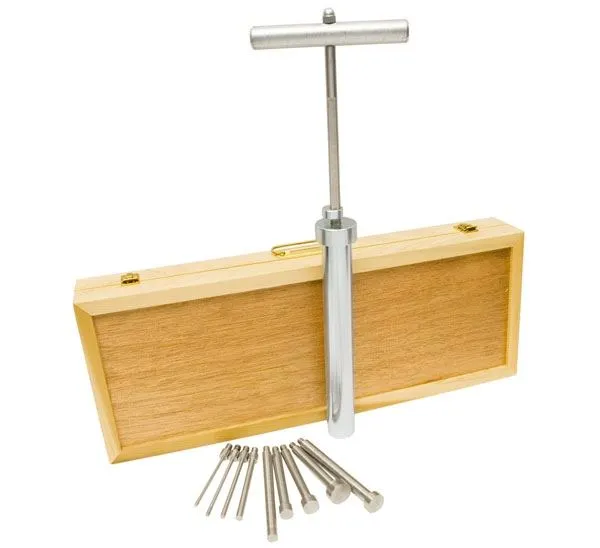

The instrument consists of a needle attached to a spring loaded plunger, the stem of which is calibrated to read 0 to 40 kg division. Long stem is graduated at every 12.5mm to read depth of penetration and for use with needles of larger areas . The small penetration stem is also graduation in 12.5mm division and is used with needles of smaller areas. Needle points one each of 0.25, 0.5, 1.0, 1.5, 2.0, 3.5 and 6.0 sq cm. And one Tommy pin is supplied. Complete as above in a wooden carrying case.
Features:
The instrument consists of a needle attached to a spring loaded plunger, the stem of which is calibrated to read 0 to 40 kg division. Long stem is graduated at every 12.5mm to read depth of penetration and for use with needles of larger areas . The small penetration stem is also graduation in 12.5mm division and is used with needles of smaller areas. Needle points one each of 0.25, 0.5, 1.0, 1.5, 2.0, 3.5 and 6.0 sq cm. And one Tommy pin is supplied. Complete as above in a wooden carrying case.
Standards:
- ASTM D 1558
Specifications:
- Consist of needle attached to a spring-loaded plunger.
- The stem of which is calibrated to read 0 to 40 kgs in 1 kg division.
- Long stem is graduated at every 12.5mm to read depth of penetration and for use with needles of larger areas.
- The small penetration steam is also graduated in 12.5mm division and is used with needles of smaller areas.
- Needle points one each of 0.25, 0.5, 1.0,1.5,2.0, 3.5, and 6.0 sq.cm.
Products:
- Needle points one each of 0.25, 0.5, 1.0, 1.5, 2.0, 3.5 and 6.0 sq cm.
- One Tommy pin is supplied.
Complete as above in a wooden carrying case.
