Vane Shear Apparatus- Motorized
Short info :

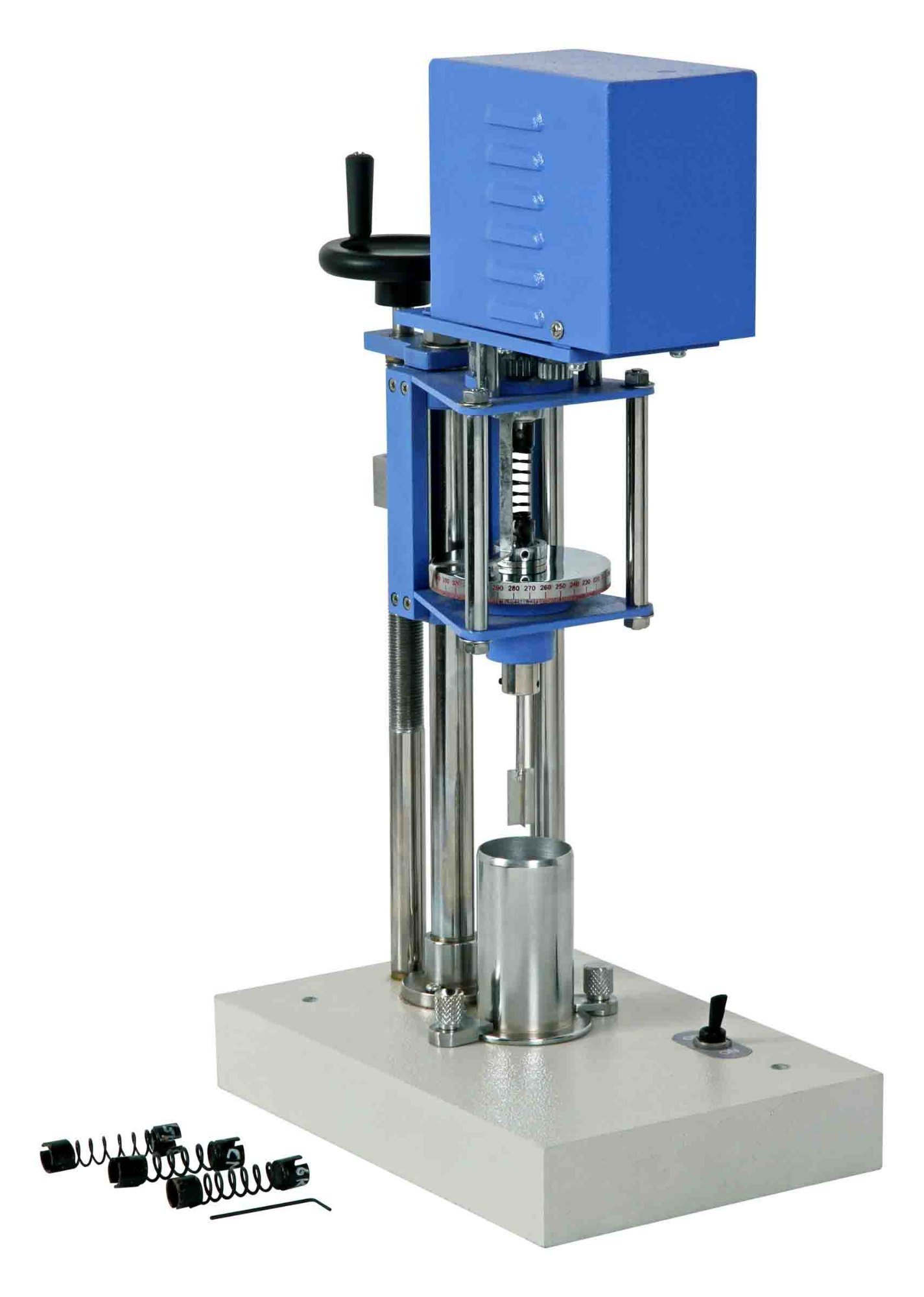

Laboratory Vane Shear Apparatus, Motorised consists of a special motor, adjustable in height by means of a lead screw rotated by a drive wheel to enable the vane to be lowered into the specimen. Rotation of the vane is by means of an electric motor turns the upper end of a calibrated torsion spring to give a rotation of 0.1 °/sec. The vane shaft is attached through the hollow upper shaft to a resettable pointer which indicates the angle of torque on a dial graduated in degrees. The dial reading multiplied by spring factor gives the torque.
Wizard Auto 250 KN - Automatic Compression Testing Machines
Description:
Vane shear test is a useful method of measuring the shear strength of clay. It is a cheaper and quicker method. The test can also be conducted in the laboratory. The laboratory vane shear test for the measurement of shear strength of cohesive soils, is useful for soils of low shear strength (less than 0.3 kg/cm2) for which tri-axial or unconfined tests can not be performed. The test gives the un-drained strength of the soil. The undisturbed and remoulded strength obtained are useful for evaluating the sensitivity of soil.
Features:
Vane shear test is a useful method of measuring the shear strength of clay. It is a cheaper and quicker method. The test can also be conducted in the laboratory. The laboratory vane shear test for the measurement of shear strength of cohesive soils, is useful for soils of low shear strength (less than 0.3 kg/cm2) for which tri-axial or unconfined tests can not be performed. The test gives the un-drained strength of the soil. The undisturbed and remoulded strength obtained are useful for evaluating the sensitivity of soil.
Standards:
- IS: 4434 (1978)
Specifications:
Consists of a torque head adjustable in height by means of a lead screw rotated by a drive wheel to enable the vane to be lowered into the specimen. Rotation of the vane is by means of an electrically operated rate of rotating is 1/60 R.P.M. Suitable for operation on 230 V A.C. Single Phase which operates a worm gear arrangement turning the upper end of a calibration torsion spring, vane dia, rod dia, vane size & vane height are as per IS specifications.
The vane shaft is attached through the hollow upper shaft to a resettable pointer, which indicates the angle indicates the angle of torque on a dial graduated in degree the dial reading multiplied by spring factor gives the torque a container for soil sample is also supplied & a sampling tube of 38mm. i.d. & 150mm long can also be used as container . Supplied with set of four springs, one each of approx. 2 kgs/cm2, 4kgs/cm2, 6 kgs/cm2 & 8kgs/cm2 complete as above in a wooden carrying case.
Products:
Supplied with set of four springs, one each of approx. 2 kgs/cm2, 4kgs/cm2, 6 kgs/cm2 & 8kgs/cm2 complete as above in a wooden carrying case.
