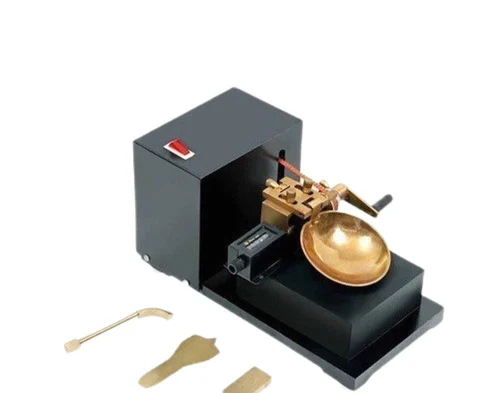

Liquid Limit Device- Motorized
Short info :
Casagrande Test Apparatus or Liquid Limit Apparatus in motorised form is known as Liquid Limit Method and has been in use for soil mechanics for a number of years. The Liquid Limit data of soils is useful to correlate mechanical properties of soil, such as compressibility and lower shear strength.
Wizard Auto 250 KN - Automatic Compression Testing Machines
Description:
Used to determine the moisture content at which clay soils pass from a plastic to a liquid state.
Comprises: removable brass cup, adjustable crank and cam mechanism, blow counter, and base.
Different versions are available conforming to the various Standards in use. They are identical in shape and differ, generally, from the type of base and weight of the cup.
Features:
Used to determine the moisture content at which clay soils pass from a plastic to a liquid state.
Comprises: removable brass cup, adjustable crank and cam mechanism, blow counter, and base.
Different versions are available conforming to the various Standards in use. They are identical in shape and differ, generally, from the type of base and weight of the cup.
Standards:
- IS : 2720 (part 5)
- IS : 9259
- BS : 1377
Specifications:
Supplied complete with Casagrande Grooving Tool and Gauge Block (Type A of lS : 9259). Suitable for operation on 220 V, 50 Hz, single phase, AC supply. Hard rubber base ,carrying housing sliding carraige and a cam to which a pulley is attached and which is belt driven by a 120 rpm synchronous motor.
Motorised model with integral blow counter. The Liquid Limit Device consists of a hard rubber base(vulcanized rubber having hardness 86 IRHD)carrying a sliding carriage assembly to which a brass cup is hinged. The cup is raised and allowed to fall through a height of 1 cm on to the hard rubber base, with the help of a lead screw provided at the back of the sliding carriage.
Products:
- Revolution counter fixed to the cam shaft having drop rate 2Rev/Sec: 1No.
- Casagrande type – A grooving tool: 1No.
- 10mm brass gauge block :1No.
