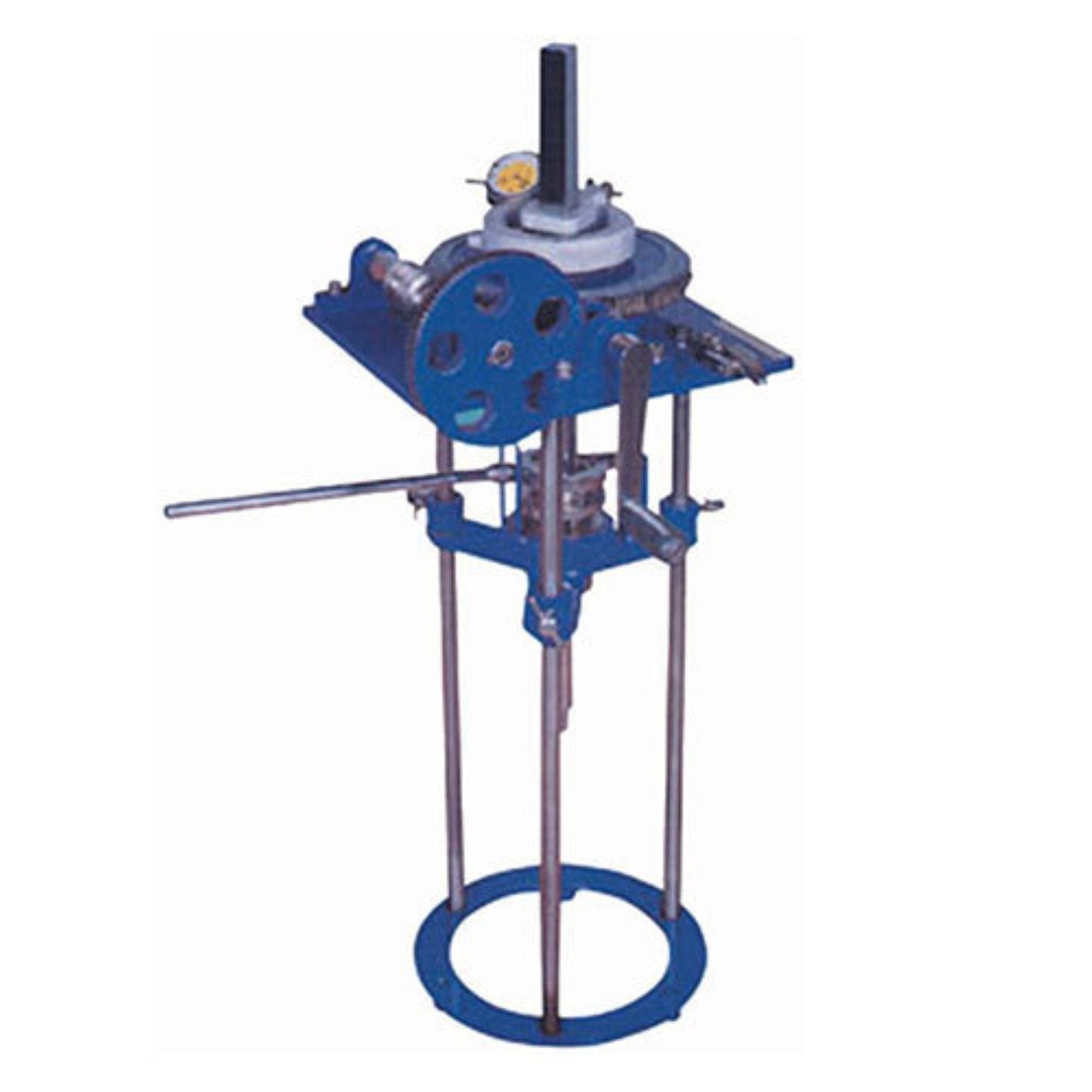

This apparatus is designed for conducting in-situ Vane Shear test from the bottom of bore hole in saturated cohesive deposits, for determining their in-place shearing resistance. The equipment consists of a torque applicator assembly mounted on a base. A gear wheel, which is marked in degrees, holds a torque ring and is geared to a crank. The torque ring has a section cut from it and deforms as torque is applied and the resultant deformation is indicated by a dial gauge. A pointer is provided for registering the rotation of the vane. A detachable stand is provided to anchor the instrument. An attachment to securely hold the string of rods is provided. A calibration curve to convert the dial gauge readings to kg-cm of torque is also supplied.

This apparatus is designed for conducting in-situ Vane Shear test from the bottom of bore hole in saturated cohesive deposits, for determining their in-place shearing resistance. The equipment consists of a torque applicator assembly mounted on a base. A gear wheel, which is marked in degrees, holds a torque ring and is geared to a crank. The torque ring has a section cut from it and deforms as torque is applied and the resultant deformation is indicated by a dial gauge. A pointer is provided for registering the rotation of the vane. A detachable stand is provided to anchor the instrument. An attachment to securely hold the string of rods is provided. A calibration curve to convert the dial gauge readings to kg-cm of torque is also supplied.

• IS 4434-1967

The apparatus is designed for conducting in situ vane shear test from bottom of a bore hole in saturated cohesive deposits for determining their in place shearing resistance.
The equipment consists of a torque applicator assembly mounted on a base, a gear wheel, which is marked in degrees, holds a torque ring and is geared to a crank, the torque ring is a split ring & deforms as torque is applied & the deformation is indicated by a dial gauge. A calibration chart to convert dial gauge readings to torque force in kgs/cm2 is supplied. A pointer is provided.
For registering the rotations of the vane, a detachable stand is provided to anchor the instrument an attachment to securely hold the string of rods

• Torque applicator assembly capacity 2000kg/cm2 with split proving ring & dial gauge 0.002 x 5mm complete with stand.
• Vane (with vane rod) 37.5mm dia x 75mm high: 1 no.
• Vane (with vane rod) 50.0mm dia x 100mm high: 1 no.
• Torque rod (square cross section) 0.6mts long: 1 no.
• Rods quick coupling type, 1 mtr. long: 1 no.
• Rods quick coupling type, 1 ½ mtr. long: 1 no.
• Dummy rod, corresponding to 37.5mm dia vane: 1 no.
• Dummy rod, corresponding to 50.0mm dia vane: 1 no.
