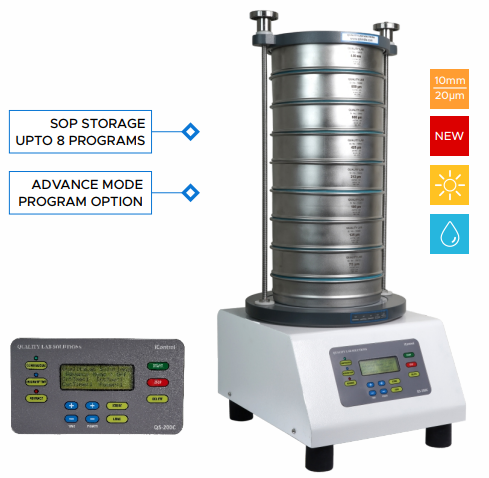

It is iControl is a micro controller based electromagnetic sieve shaker.

The instrument is powered by an electromagnetic drive which has no rotating parts, making it maintenance free and extremely quiet in operation.

The unit has 3 modes of operation Continuous, Intermittent and Advance mode operation which helps to clear blocked apertures.

"Advance Mode" allows user to Simultaneously Program the Continuous and Intermittent Vibration in once cycle and Helping User with Smart option to come up with Ideal SOP Procedure for Respective Study.

• Sieving with 3-D effect.
• For sieve up to 203mm (8”).
• Suitable for dry and wet sieving.
• Measuring range 20μm to 10mm.
• Digital setting and control of sieving parameters.
• Sieve acceleration independent of power frequency.
• Reproducible and globally comparable sieving results.
• Integrated USB interface.
• Low noise, maintenance-free.

NA

• Dry Sieving : Standard
• Wet Sieving : Optional Kit
• Mode of Operation : 3 modes (Continous, Intermittent & Advance)
• Intermittent Operation : At intervals upto 0.5 seconds
• Advance Mode : Programmable time for Continuous & Intermittent (Together) in this mode
• Capacity : Upto 8 Sieves of 50mm height, Upto l6sieves of 25 mm height
• Shake Time : Programmable from 1 mm to 99mm
• Power Level : Programmable from 1 to 20
• Amplitude : 0.1mm to 2.5mm
• Display : 20 x 4 character alphanumeric LCD
• Noise Level : Less than 61 db without sieves at maximum amplitude., Less than 71 db with sieves and material at maximum amplitude.
• Dimensions (mm) : L 385 x W 305 x H 245
• Net Weight : 50 kg Without Sieves (Approx)

Additional Accessories at Extra Cost: -

• Locking Knob (Set of 2)
• Locking Knob Black (Set of 2)
• Lid Receiver 100mm Dia
• Lid Receiver 200mm Dia
• Wet Sieve Attachment
• Test Sieve 200mm Dia
• Test Sieve 100mm Dia
• Smart Sieve
• Smart Vertical Rods (Set of 2)
