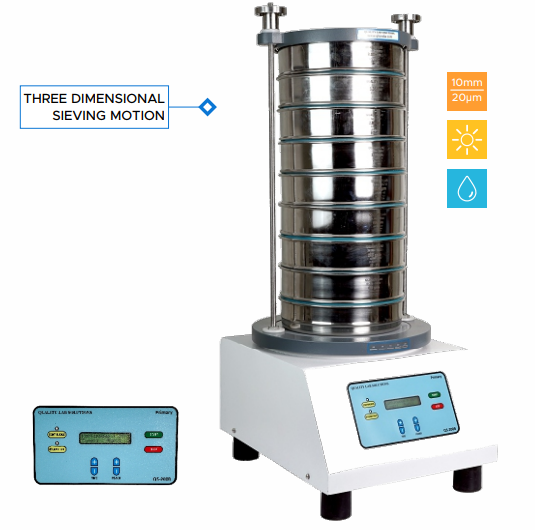

It is a micro controller based electromagnetic sieve shaker.

The instrument is powered by an electromagnetic drive which has no rotating parts, making it maintenance free and extremely quiet in operation.The unit has been designed for user friendly operation.The sieve shakers micro controller is used to set both the process time and the amplitude setting.The top plate of the Sieve Shaker has clearly marked calibrated lines to aid visual inspection of the amplitude.The unit has 2 modes of operation Continuous and Intermittent. Intermittent operation helps to clear blocked apertures.

• Sieving with 3-D effect
• For sieve up to 203mm (8")
• Suitable for dry and wet sieving
• Measuring range 20μm to 10mm
• Digital setting and control of sieving parameters
• Reproducible and globally comparable sieving results
• Low noise, maintenance-free

NA

• Dry Sieving : Standard
• Wet Sieving : Optional Kit
• Mode of Operation : 2 modes (Continous,Intermittent)
• Intermittent Operation : At intervals upto 0.5 seconds
• Capacity : Upto 8 Sieves of 50mm height, Upto l6sieves of 25 mm height
• Shake Time : Programmable from 1 mm to 99mm
• Power Level : Programmable from 1 to 20
• Amplitude : 0.1mm to 2.5mm
• Display : 16 x 2 character alphanumeric LCD
• Noise Level : Less than 61 db without sieves at maximum amplitude., Less than 71 db with sieves and material at maximum amplitude.
• Dimensions (mm) : L 385 x W 305 x H 245
• Net Weight : 50 kg Without Sieves (Approx)

Additional Accessories at Extra Cost: -

• Locking Knob (Set of 2)
• Locking Knob Black (Set of 2)
• Lid Receiver 100mm Dia
• Lid Receiver 200mm Dia
• Wet Sieve Attachment
• Test Sieve 200mm Dia
• Test Sieve 100mm Dia
• Smart Sieve
• Smart Vertical Rods (Set of 2)
