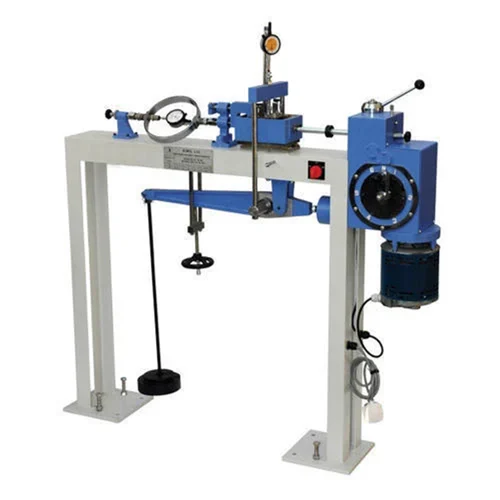

The unit confirms to IS:2720. It has a hand operated horizontal loading system for shearing the specimen. Hangers are provided for creating normal stress. Set of weights to give a normal stress upto 3 kg/cm² through lever, comprising 4 of 0.05 kg/cm², 1 of 0.1 kg/cm², 1 of 0.2 kg/cm², 3 of 0.5 kg/cm² and 1 of 1 kg/cm². Complete as above but without dial gauges and proving ring.

The unit confirms to IS:2720. It has a hand operated horizontal loading system for shearing the specimen. Hangers are provided for creating normal stress. Set of weights to give a normal stress upto 3 kg/cm² through lever, comprising 4 of 0.05 kg/cm², 1 of 0.1 kg/cm², 1 of 0.2 kg/cm², 3 of 0.5 kg/cm² and 1 of 1 kg/cm². Complete as above but without dial gauges and proving ring.

• IS 2720 (PART 13)
• BS1377
• ASTM D3080

• Shear box assembly, 60 mm square, complete with a U-bracket, guide pins and spacing screws, made of brass.
• Gripper assembly consisting of two plain grid plates, two perforated grid plates, one base plate and one loading pad, all made of brass.
• Two porous stones, each 6 mm thick, fitting the shear box.
• Shear box housing of brass, complete with two ball roller strips.
• Loading unit with normal loading of 8 kg/cm² on 60 mm square specimen.
• Specimen cutter for a specimen size of 60 mm x 60 mm x 25 mm.
• Set of weights to give a normal stress upto 3 kg/cm² through lever, comprising 4 of 0.05 kg/cm², 1 of 0.1 kg/cm², 1 of 0.2 kg/cm², 3 of 0.5 kg/cm² and 1 of 1 kg/cm². Complete as above but without dial gauges and proving ring.

• Accommodates the direct shear box assembly.
• Complete with two ball roller strips.
• Specimen cutter: for cutting 60 x 60 x 25 mm.
• Specimen form larger samples. Set of weights to give a normal stress of 3kg/sa.cm
