Core Cutter of known volume is driven into the soil by a rammer. The core cutter is dug out, trimmed and the soil inside weighed and dried for moisture and density check. This is used for the determination of in situ dry density of natural or compacted fine-grained soil, free from aggregates. A cylindrical cutter is used to extract a sample of the soil with the help of a dolly and rammer. From the weight, density and the moisture, and dry density of the soil is readily calculated.

Core Cutter of known volume is driven into the soil by a rammer. The core cutter is dug out, trimmed and the soil inside weighed and dried for moisture and density check. This is used for the determination of in situ dry density of natural or compacted fine-grained soil, free from aggregates. A cylindrical cutter is used to extract a sample of the soil with the help of a dolly and rammer. From the weight, density and the moisture, and dry density of the soil is readily calculated.

• IS 2720 (Part XXIX) 1966
• BS 1377-9

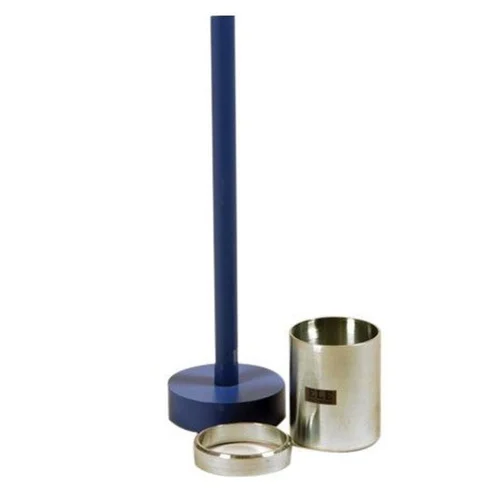

It consists one each of:

• Cylindrical core cutter made of steel,127.3mm. Long and 100mm internal diameter.
• Steel dolly, 25mm high with a lip to enable it to be located on top of the core cutter, hammer with detachable steel rod.

Additional Accessories at Extra Cost: -

• Cylindrical core cutter 100mm i.d. x 175mm long
• Dolly
• Test form pad of 50.
