Consolidation Cells (Floating)
Short info :

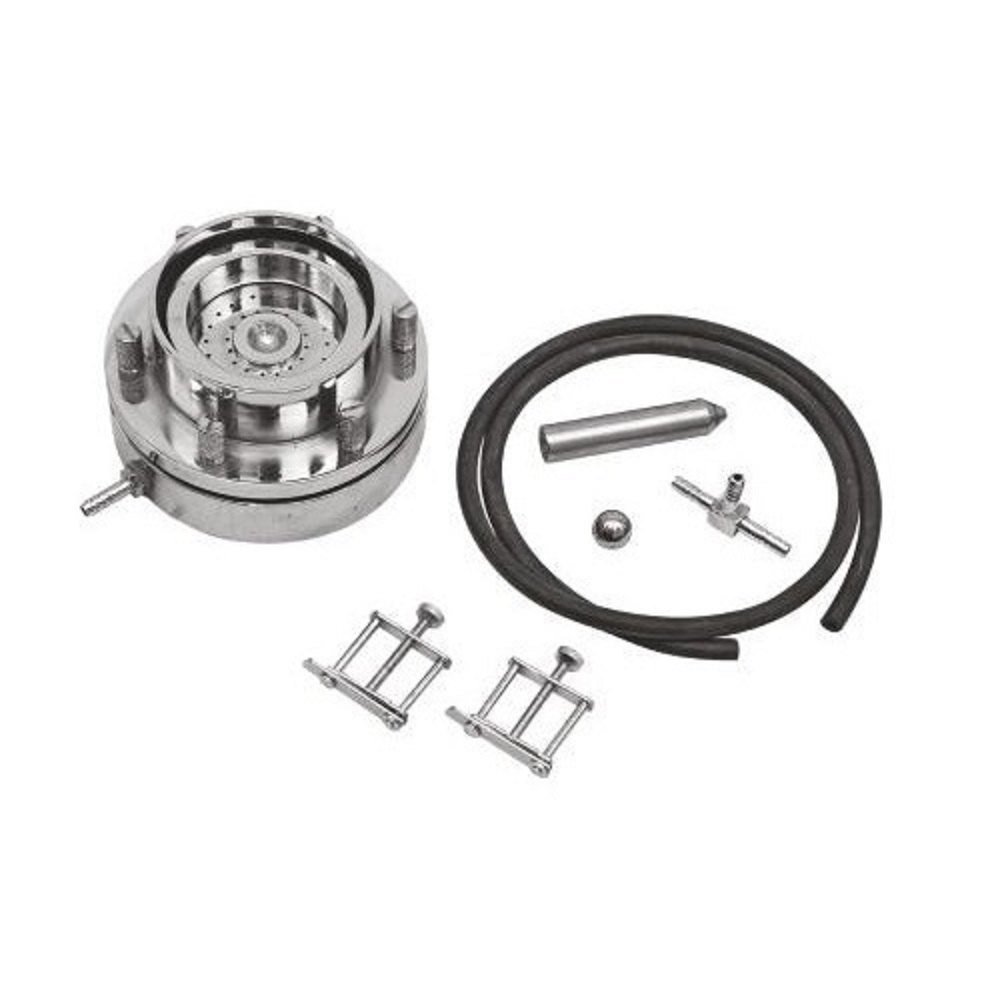

Consolidation Cells (Floating) Complete cell assembly features stainless steel construction with a self-trimming cutter ring. Similar in construction to a fixed ring cell with the exception that the lower porous stone fits inside the cutter ring and can move vertically within it.
Wizard Auto 250 KN - Automatic Compression Testing Machines
Description:
The sample ring is also free to move vertically. The cell comes in different models like Floating Ring Consolidation Cell 50mm, Floating Ring Consolidation Cell 70mm, Floating Ring Consolidation Cell 75mm, Floating Ring Consolidation Cell 100mm.
Features:
The sample ring is also free to move vertically. The cell comes in different models like Floating Ring Consolidation Cell 50mm, Floating Ring Consolidation Cell 70mm, Floating Ring Consolidation Cell 75mm, Floating Ring Consolidation Cell 100mm.
Standards:
- ASTM D2435
- ASTM D5333
- ASTM D4546
- BS: 1377:5
Specifications:
Water trough : Floating ring type of Consolidometer (Odeometer) cell assembly for 60mm dia x 20mm thick specimens complete with floating ring with two guide rings, pair of porous stones, pressure pad and cutting collar. Set of weights to give a pressure of 10kg/cm. sq. on 60mm dia specimens. Floating ring type of Consolidometer (Odeometer) cell assembly for 50mm dia x 20mm thick specimens complete with accessories as above. Set of weights to give a pressure of 10kg/cm2. On 70mm dia specimen. Floating ring type of Consolidometer (Odeometer) cell assembly for 100mm dia x 25mm thick specimens complete with accessories as above. Set of weights to give a pressure of 10kg/cm2. On 100 mm dia specimen. Additional set of weights for loading up to 20kg/ cm2. Set of weights to give a pressure of 10kg / cm2. On a 60mm dia specimen comprising 10 off 1.0kg/cm2. Set of weights to give a pressure of 10kg /cm2. On a 50mm dia specimen comprising 10 off 1.0kg/cm2. Set of weights to give a pressure of 10kg /cm2. On a 70mm dia specimen comprising 10 off 1.0kg/cm2. Set of weights to give a pressure of 10kg /cm2. On a 100mm dia specimen comprising 10 off 1.0kg/cm2.
Products:
- Pair of top & bottom porous stones for 50mm dia cell
- Pair of top & bottom porous stones for 60mm dia cell
- Pair of top & bottom porous stones for 70mm dia cell
- Pair of top & bottom porous stones for 100mm dia cell
