The one-way Consolidation Test of the soil sample allows to determine the settlement characteristic over a certain period of time. The loads are applied in incremental increments and the slump values ??are read at the dial gauge hours. The tests are carried out on samples prepared from intact samples. The data obtained from these tests, together with the classification data and ground loading history information, make predictions about the behavior of the foundations under load.

This unit have 3 loading machines instead of one.

The one-way Consolidation Test of the soil sample allows to determine the settlement characteristic over a certain period of time. The loads are applied in incremental increments and the slump values ??are read at the dial gauge hours. The tests are carried out on samples prepared from intact samples. The data obtained from these tests, together with the classification data and ground loading history information, make predictions about the behavior of the foundations under load.

This unit have 3 loading machines instead of one.

• ASTM D2435
• ASTM D3877
• ASTM D4546
• BS 1377: 5

The one-way Consolidation Test of the soil sample allows us to determine the settlement characteristic over a certain period of time. The loads are applied in incremental increments and the slump values ??are read at the dial gauge hours.

The tests are carried out on samples prepared from intact samples. The data obtained from these tests, together with the classification data and ground loading history information, make predictions about the behavior of the foundations under load.

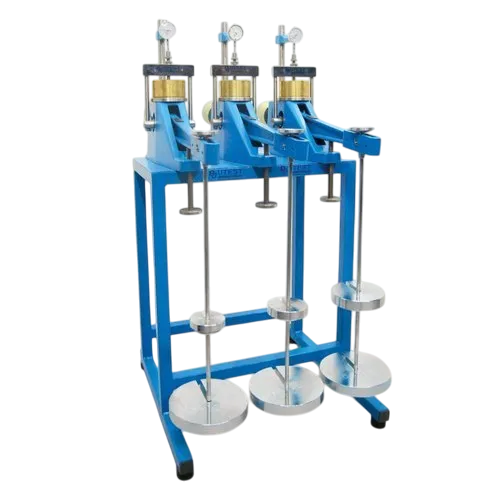

It is supplied with a High-Pressure Consolidation Test Set, Loading Frame, Consolidation Table with 3 oedometer carrying capacity, Ø 50 mm Consolidation Cell Set, 10×0.01 mm Comparator Clock, and 64 kg Weight Set.

The unit comprises:

• Loading Unit 20 kg/cm² capacity – 3 No.
• Consolidation cell 60mm x 20mm height – 3 No.
• Dial gauge 5 x 0.002mm – 3 No.
• Set of Weights (Stress – up to 10kg/cm²) – 3 Sets
