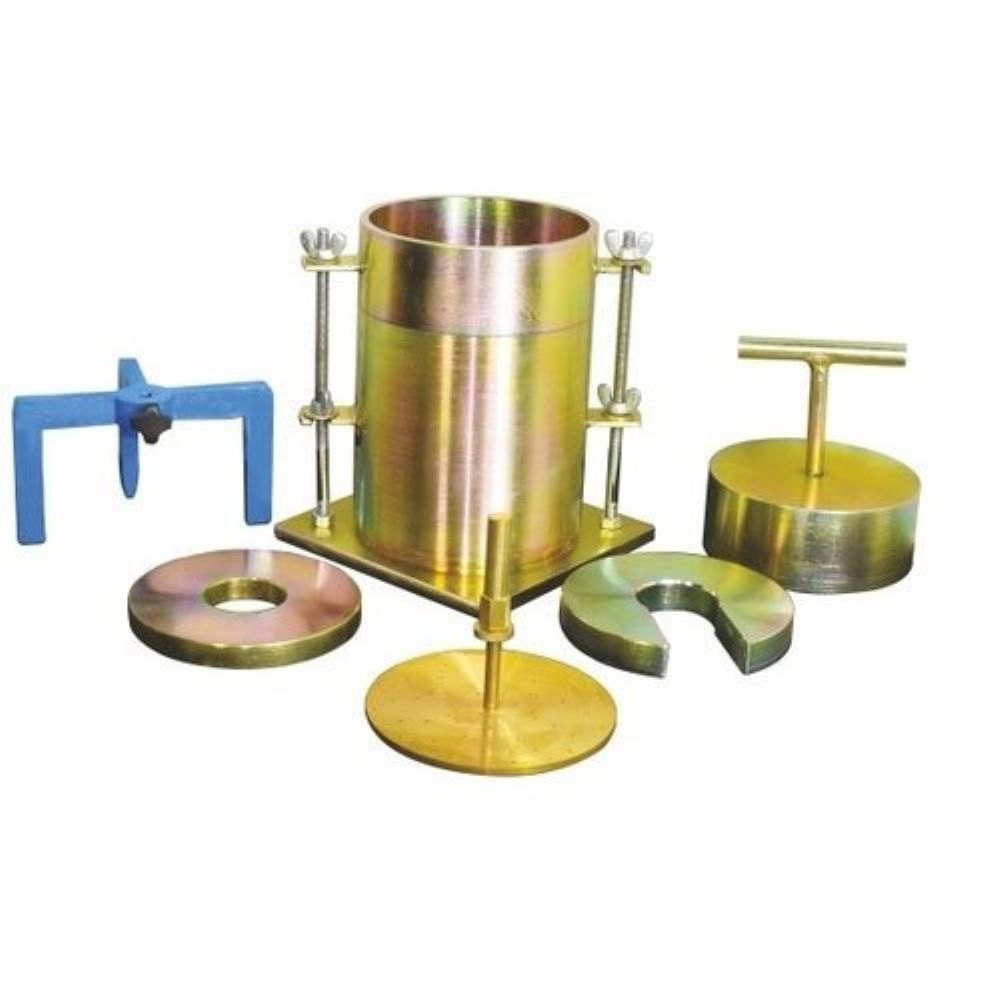

California Bearing Ratio (CBR) Mould Set is for use in CBR testing. The set consists of a 6x7in (152x178mm) Mould Body, 2in (51mm) Compaction Collar, and a perforated Mould Base with threaded rods and wing nuts. Constructed of heavy, rust-resistant plated steel. The Mould Body, Collar, and Base components are also available individually. The set and components can be used with Soil Compaction Hammers or with the Mechanical Soil Compactor.

• CBR Mould ASTM / AASHTO, plated steel mould body with 6″ (152.4 mm) dia. x 7″ (177.8 mm) height, supplied complete with extension collar and perforated base plate
• Spacer Disc with T handle ASTM, 150.8 mm dia. x 61.4 mm height”
• Annular Surcharge Weight ASTM, 2.27 kg
• Slotted Surcharge Weight ASTM, 2.27 kg
• CBR Solid Base Plate ASTM
• Straightedge 300x30x5 mm
• Cutting Edge
• Filter Paper for CBR Test No: 1×152,4 mm dia. (Pack of 100)
• Filter screen, 144 mm dia. 150 μm mesh ASTM

• ASTM D 1883
• AASHTO T 193
