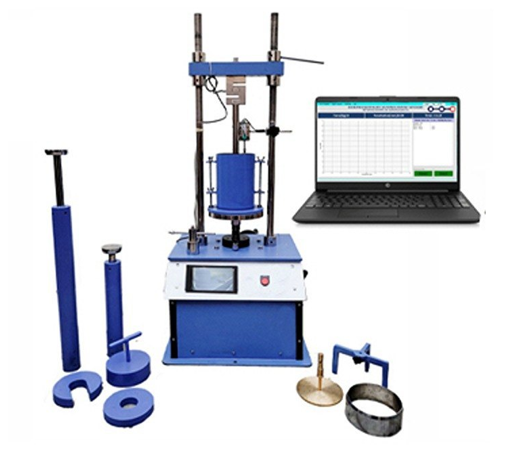

California Bearing Ratio Test Apparatus- Digital
Short info :
Digital California Bearing Ratio-CBR Test Apparatus (CBR) is designed for performing laboratory evaluation of the California Bearing Ratio value of highway sub bases and subgrade and for the determination of strength of cohesive materials which have maximum particle sizes less than 19 mm (3/4”).
Wizard Auto 250 KN - Automatic Compression Testing Machines
Description:
Digital CBR Testing Machine is designed for performing laboratory evaluation of the California Bearing Ratio value of highway sub bases and subgrade and for the determination of strength of cohesive materials which have maximum particle sizes less than 19 mm (3/4”). The machine is designed to be mounted on a suitable bench and comprises of a robust and compact two column frame with adjustable upper cross beam. The frame is 50 kN capacity. Three test speeds are provided 1.25 mm/min, 1.50 mm/min & 2.5 mm/min tests. This main feature allows the user to perform tests. Laboratory California Bearing Ratio Apparatus with software & PC interface.
Features:
Digital CBR Testing Machine is designed for performing laboratory evaluation of the California Bearing Ratio value of highway sub bases and subgrade and for the determination of strength of cohesive materials which have maximum particle sizes less than 19 mm (3/4”). The machine is designed to be mounted on a suitable bench and comprises of a robust and compact two column frame with adjustable upper cross beam. The frame is 50 kN capacity. Three test speeds are provided 1.25 mm/min, 1.50 mm/min & 2.5 mm/min tests. This main feature allows the user to perform tests. Laboratory California Bearing Ratio Apparatus with software & PC interface.
Standards:
- IS : 9669
- IS : 2720 (PART XVI)
Specifications:
- Three Speed Load Frame, 50kn ( 5000 Kgf) Capacity
- Mould 150mm Id X 175mm High
- Perforated Base Plate for Mould
- Extension Collar, 150mm Id X 50mm High
- Penetration Piston, 50mm Face Dia.
- Adjustable Bracket, for Penetration Dial Gauge
- Circular Metal Spacer Disc. with Detachable Handle 148mm Dia X 47.7mm Hight
- Annular Metal Weight, 2.5Kg, 147mm Dia with 53 mm Dia Central Hole
- Perforated Metal Weight 2.5 Kg. 147mm Dia, with 53mm Dia Soft
- Perforated Plate, 148mm Dia, with Adjustable Stem and Lock Nut
- Metal Tripod for Dial Gauge
- Cutting Collar
- Rammer 2.6Kg, 310mm Controlled Drop
- Rammer 4.9Kg, 450mm Controlled Drop
- S Type Load Cell Capacity 50 kN
- LVDT, 25 mm Travel, 0.01mm Least Count (Optional Extras)
Products:
- Three Speed Load Frame, 50kn ( 5000 Kgf) Capacity
- Mould 150mm Id X 175mm High
- Perforated Base Plate for Mould
- Extension Collar, 150mm Id X 50mm High
- Penetration Piston, 50mm Face Dia.
- Adjustable Bracket, for Penetration Dial Gauge
- Circular Metal Spacer Disc. with Detachable Handle 148mm Dia X 47.7mm Hight
- Annular Metal Weight, 2.5Kg, 147mm Dia with 53 mm Dia Central Hole
- Perforated Metal Weight 2.5 Kg. 147mm Dia, with 53mm Dia Soft
- Perforated Plate, 148mm Dia, with Adjustable Stem and Lock Nut
- Metal Tripod for Dial Gauge
- Cutting Collar
- Rammer 2.6Kg, 310mm Controlled Drop
- Rammer 4.9Kg, 450mm Controlled Drop
- S Type Load Cell Capacity 50 kN
- LVDT, 25 mm Travel, 0.01mm Least Count (Optional Extras)
