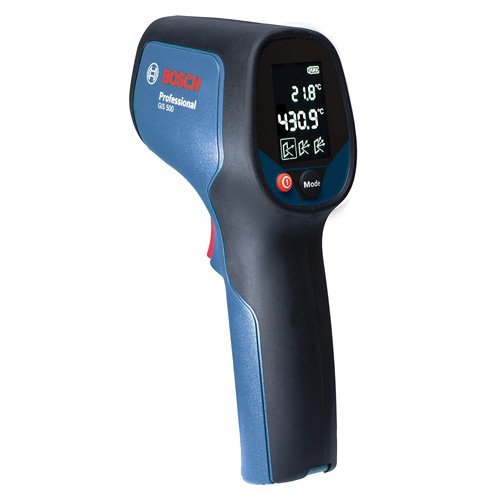

Bosch GIS 500 Thermo Detector
Short info :

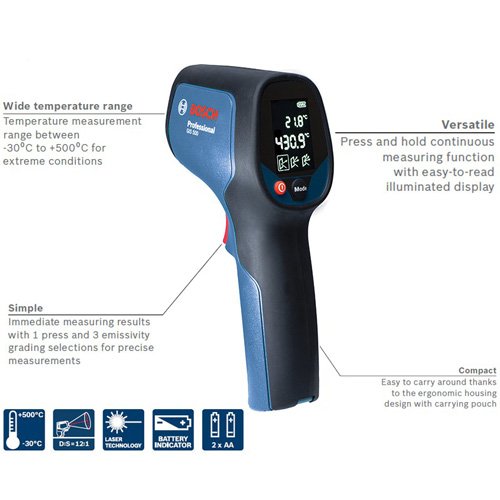

The Bosch GIS 500 Professional thermo detector delivers high-quality and precise results in non-contact temperature reading ranging between -30°C to +500°C. Bosch GIS 500 Infrared Thermometer is having straight forward user interface for intuitive operation.
- Simple – Immediate measurement results with a single press, with the selection of 3 emissivity grades for more accurate measurement
- Compact – Easy to transport thanks to the ergonomic design of the housing with carrying case
- Wide Temperature Range: The digital thermometer has a wide working range and can measure temperatures between -30°C and +500°C
- Accurate measurement and easy recording of temperature
Wizard Auto 250 KN - Automatic Compression Testing Machines
Description:
The Bosch GIS 500 Professional thermo detector delivers high-quality and precise results in non-contact temperature reading ranging between -30 °C to +500 °C. Bosch GIS 500 Infrared Thermometer is having straight forward user interface for intuitive operation.
- Simple – Immediate measurement results with a single press, with the selection of 3 emissivity grades for more accurate measurement
- Compact – Easy to transport thanks to the ergonomic design of the housing with carrying case
- Wide Temperature Range: The digital thermometer has a wide working range and can measure temperatures between -30°C and +500°C
- Accurate measurement and easy recording of temperature
Features:
- Electrical Applications – Quickly and effectively check cable connections, cabinets, and electrical components
- HVAC – Check underfloor heating and AC, locate leaks, and inspect radiators
- Window Installation – Search for faulty insulation and thermal bridges and detect leaks and water penetration
- Automotive – Scan heating and cooling systems, fuse boxes, coolant pipes and catalytic converters or check the engine temperature
- Characteristic – Non-contact, Multipurpose, No radiation & Fast and precise
Standards:
- N/A
Specifications:
Specifications of Bosch GIS 500 Temperature Meter
Measurement range |
-30°C to +500°C |
Unit of measurement |
°C |
Measuring accuracy (typical) |
|
−30°C ≤ t ≤ −10°C |
± (1.8°C + 0.1 x |t| °C) |
−10°C < t < 0°C |
± 2.8°C |
0°C ≤ t < 100°C |
±1.8°C |
100°C ≤ t ≤ 500°C |
± 1.8% |
Power supply and runtime |
2 x 1.5V LR6 (AA) batteries 9h |
Operating temperature |
-5 – 50°C |
Storage temperature |
-20 – 70°C |
Optics |
12:1 |
Dust and splash protection |
IP53 |
Weight |
0.22kg |
Warranty |
One Year Warranty |
Products:
The Bosch GIS 500 Professional thermo detector delivers high-quality and precise results in non-contact temperature reading ranging between -30 °C to +500 °C. Bosch GIS 500 Infrared Thermometer is having straight forward user interface for intuitive operation.
- Simple – Immediate measurement results with a single press, with the selection of 3 emissivity grades for more accurate measurement
- Compact – Easy to transport thanks to the ergonomic design of the housing with carrying case
- Wide Temperature Range: The digital thermometer has a wide working range and can measure temperatures between -30°C and +500°C
- Accurate measurement and easy recording of temperature
Bosch GIS 500 Scope of delivery:
- Bosch GIS 500
- Carrying Pouch
- 1 x 1.5 V LR6 battery (AA)
- User Manual
