Leica Lino L2 Pro Crossline Laser Level
Short info :
The Leica Lino L2 cross line laser projects highly visible lines at right angles to one another. The time-consuming and tedious task of drawing lines on a wall is a thing of the past. The Leica Lino L2 features high accuracy of 1mm@5meters. With its multifunctional magnetic mini tripod, the Leica Lino L2 can be quickly set-up or attached to walls, shelves or profiles.
- Working Range: Up to 25m* > 80 m with detector
- Handy size – easy to fit in any professional toolbox
- Soft grip components prevent slipping
- Projection and leveling accuracy of +/- 1mm @ 5m
- Self-leveling function The instrument levels itself in the range of ± 4°
- IP54 dust and splash water protected
Wizard Auto 250 KN - Automatic Compression Testing Machines
Description:
The Leica Lino L2 Pro cross line laser projects highly visible lines at right angles to one another. The time-consuming and tedious task of drawing lines on a wall is a thing of the past. The Leica Lino L2 features high accuracy of ±1mm@5meters. With its multi-functional magnetic adapter, the Leica Lino L2 can be quickly set-up or attached to walls, shelves or profiles.
Exact and quick projection of horizontal and vertical lines
OUTSTANDING LASER VISIBILITY

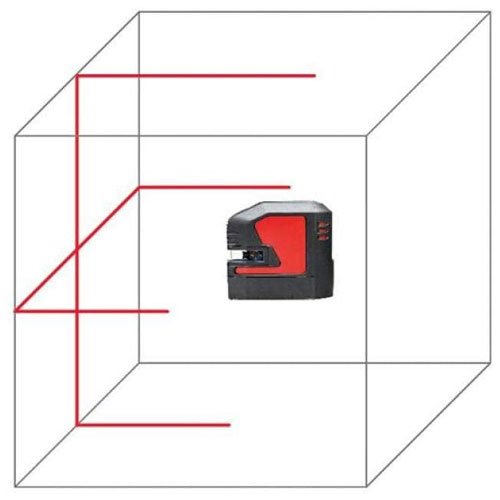

The high-precision optics of the Leica Lino L2 ensure outstanding laser line visibility up to 25 meters, depending on lighting conditions. Its exceptionally long horizontal and vertical laser lines are projected to floors, walls and ceilings at more than 180 degrees.
SELF-LEVELLING
The Leica Lino L2 Pro automatically adjusts its positioning if it is slightly out of level up to ± 4°. Outside this limit a visual alert is activated to prevent errors.

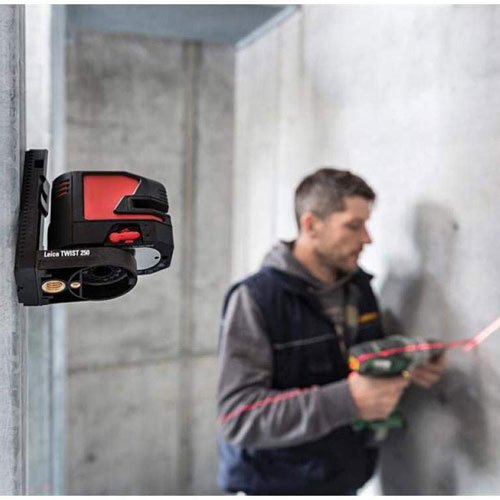

SMART ADAPTERS
Smart adapters allow for quick and precise positioning. You can set up rotatable adapters over edges and profiles, or easily attach them to iron pipes, tracks and bars.
RUGGED DESIGN
The Leica Lino L2 is dust and spray water protected to IP 54 standards. This makes it a rugged instrument suitable for all your jobs.
Features:
- Working Range: Up to 25m* > 80 m with detector
- Handy size – easy to fit in any professional toolbox
- Soft grip components prevent slipping
- Projection and leveling accuracy of +/- 1mm @ 5m
- Self-leveling function The instrument levels itself in the range of ± 4°
- IP54 dust and splash water protected
Standards:
- N/A
Specifications:
Leica Lino L2 Pro Laser Level Technical Specifications
|
Laser |
2 lines (red) |
|
Beam direction/fan angle |
Vertical / >170°, Horizontal / >180° |
|
Range* |
25 m (82 ft) |
|
Range* with receiver |
80 m (262 ft) |
|
Levelling accuracy |
±0.2 mm/m or ±1.0 mm @ 5m or ±2.0 mm @ 10m |
|
Horizontal/Vertical line accuracy |
±0.3 mm/m (±0.004 in/ft) |
|
Self-levelling range |
± 4 ° |
|
Self-levelling time |
< 3 s |
|
Out-of-level warning |
Yes à laser lines blink every 5 s |
|
Levelling system |
Automatic pendulum |
|
Pendulum Lock |
Yes |
|
Laser type |
635 ± 5 nm, Class 2 acc. IEC 60825-1 |
|
Protection class |
IP 54 (IEC 60529) dust and splash water |
|
Drop resistance |
6 x 0.5 m (1.64 ft) |
|

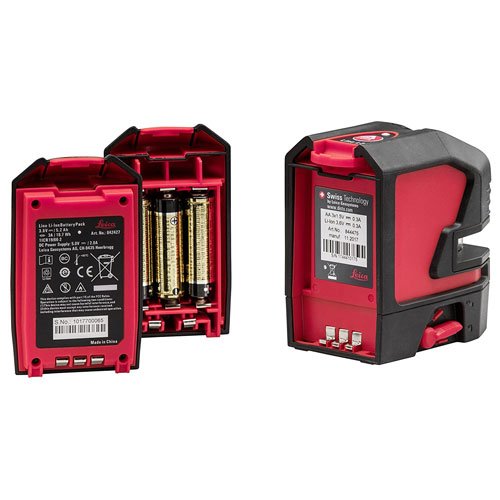

Battery type |
Lino Li-Ion battery pack 5200 mAh / 18.7 Wh (3 alkaline AA) |
|
Operating time with Li-Ion battery |
8h (2 beam) – 13h (1 beam) continuous |
|
Operating time with alkaline battery |
26h (2 beam) – 44h (1 beam) continuous |
|
Low power alert |
Status LED red |
|
Automatic shut-off |
Available |
|
Dimensions (L x W x H) |
110 x 60 x 100 mm (4.33 x 2.36 x 3.93 in) |
|
Weight with Li-Ion/Alkaline battery |
530/500 g (1.17/1.10 lbs) |
|
Operating temperature |
-10…+50 °C (+14…+122 °F) |
|
Storage temperature |
-25…+70 °C (-13…+158 °F) |
|
Temperature alert |
Status LED blinks red (5Hz) |
|
Laser line width at 5m distance |
< 2 mm (<0.08 in) |
|
Beam divergence |
< 1.5 mrad |
|
Tripod thread |
1/4’’ (+ 5/8’’ with adapter) |
|
Pulse power for receiver |
Yes, auto |
|
Size Info’s Case |
Single 1 pcs = 33.5 cm x 38 cm x 17 cm Weight: 3.7 kg |
|
Size Info’s Box |
Single 1 pcs = 16.8 cm x 19 cm x 9.5 cm Weight: 1.2 kg |
Products:
The Leica Lino L2 cross line laser projects highly visible lines at right angles to one another. The time-consuming and tedious task of drawing lines on a wall is a thing of the past. The Leica Lino L2 features high accuracy of 1mm@5meters. With its multifunctional magnetic mini tripod, the Leica Lino L2 can be quickly set-up or attached to walls, shelves or profiles.
- Working Range: Up to 25m* > 80 m with detector
- Handy size – easy to fit in any professional toolbox
- Soft grip components prevent slipping
- Projection and leveling accuracy of +/- 1mm @ 5m
- Self-leveling function The instrument levels itself in the range of ± 4°
- IP54 dust and splash water protected
Leica Lino L2 Pro Scope of delivery:
- Leica Lino L2 Pro
- Twist 250
- Case
- Li-Ion battery
- Charger
- Alkaline battery tray
- Target Plate
