Bosch GTL 3 Tile Laser Level
Short info :

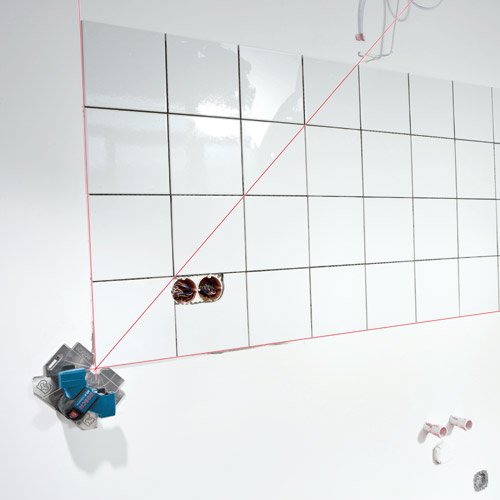

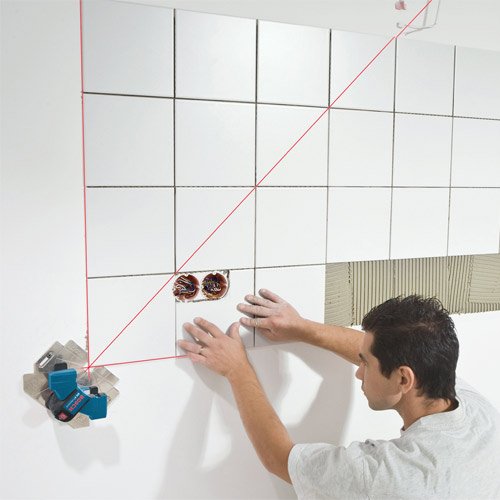

The Bosch Floor Tile Laser Level GTL 3 is an ideal tool for laying all floor tiles. The Bosch GTL3 as the name suggests is the only tile laser level on the market to project a third line in the 45° direction in addition to the two standard right-angled lasers. This makes not only parallel laying but also diagonal laying of the tiles very easy and quick. The Bosch GTL 3 Professional Tile Laser can also be used for many other jobs such as wallpapering, boarding, and when laying stones
- Working Range with Target Plate 20m
- Projects three laser lines for easy parallel and diagonal laying
- With its 45-degree line, laying tiles has never been this fast or easy
- Projection and leveling accuracy of +/- 0.2mm @ 1m
- Lightweight and compact design, and single-button operation
- Simple to use with its one button and LED battery indicator

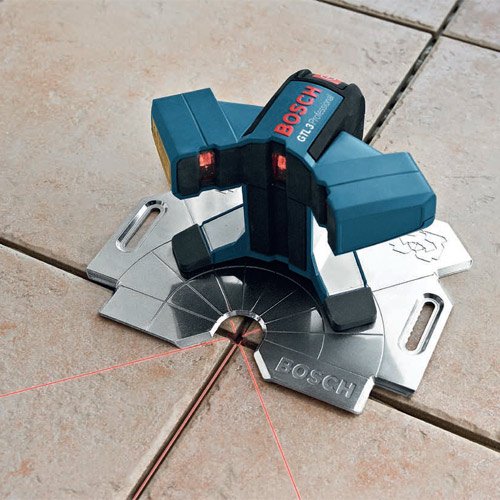

- Secure: Features strong magnets on the bottom of laser tool to provide secure attachment on included positioning plate and other ferrous metal surfaces
Wizard Auto 250 KN - Automatic Compression Testing Machines
Description:
Clearly visible lasers
The lasers on the Bosch GTL3 new tile laser level are clearly visible thanks to the new strong focusing optical components designed by Bosch. The range when used with the target plate included is upto 20 meters. The laser line accuracy of 0.2 millimeters per meter makes the Bosch GTL 3 the best tile laser in its class.
Designed for the job
More convenient working is ensured by the lightweight and compact design, and the single-button operation. Two magnetic feet make it easier to fit the tool on a wall or floor using the metal plate that is supplied as standard. The tool is robust and also dust and splash-protected to IP 54. It remains fully functional after being dropped from a height of one meter.
Features:
- Working Range with Target Plate 20m
- Projects three laser lines for easy parallel and diagonal laying
- With its 45-degree line, laying tiles has never been this fast or easy
- Projection and leveling accuracy of +/- 0.2mm @ 1m
- Lightweight and compact design, and single-button operation
- Simple to use with its one button and LED battery indicator
- Secure: Features strong magnets on the bottom of laser tool to provide secure attachment on included positioning plate and other ferrous metal surfaces
Standards:
- N/A
Specifications:
Specifications of Bosch GTL 3 Tile Laser Level
|
Working range with target plate |
20m |
|
Angular accuracy |
±0.2mm/m |
|
Projection |
3 lines |
|
Laser diode / class |
635 nm, < 1 mW / 2 |
|
Operating time, max. |
18 h in 2-line mode |
|
Dust and splash protection |
IP54 |
|
Batteries |
4 x 1.5 V LR6 (AA) |
|
Weight |
440g |
|
Operating temperature |
-10 – 50°C |
|
Storage temperature |
-20 – 70°C |
|
Warranty |
One Year Warranty |
Products:
The Bosch Floor Tile Laser Level GTL 3 is an ideal tool for laying all floor tiles. The Bosch GTL3 as the name suggests is the only tile laser level on the market to project a third line in the 45° direction in addition to the two standard right-angled lasers. This makes not only parallel laying but also diagonal laying of the tiles very easy and quick. The Bosch GTL 3 Professional Tile Laser can also be used for many other jobs such as wallpapering, boarding, and when laying stones
- Working Range with Target Plate 20m
- Projects three laser lines for easy parallel and diagonal laying
- With its 45-degree line, laying tiles has never been this fast or easy
- Projection and leveling accuracy of +/- 0.2mm @ 1m
- Lightweight and compact design, and single-button operation
- Simple to use with its one button and LED battery indicator
- Secure: Features strong magnets on the bottom of laser tool to provide secure attachment on included positioning plate and other ferrous metal surfaces

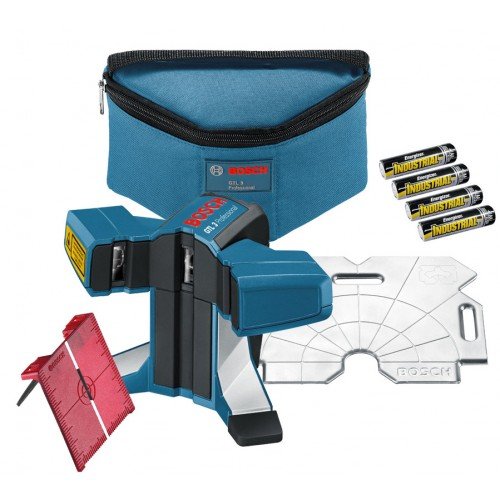

Bosch GTL 3 Scope of delivery:
- Bosch GTL 3
- Carrying Pouch
- Laser Target Plate
- Alignment Disc
- 4 x AA Alkaline Batteries
- User Manual
