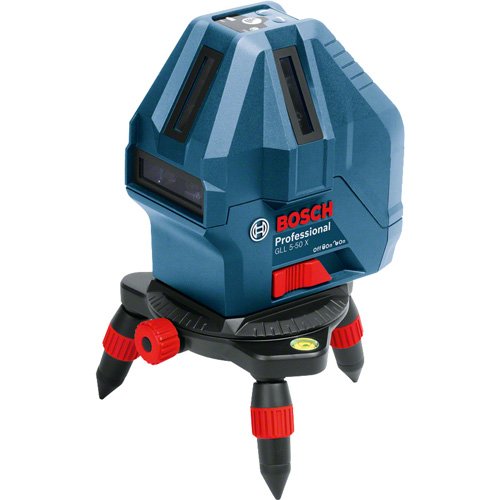

Bosch GLL 5-50X Crossline Laser Level
Short info :
The Bosch GLL 5-50X Professional is positioned as an advanced level 5-line crossline laser level. It is a simple and easy product which has adequate technical specification and a more competitive pricing. It’s the ideal tool for users doing the basic levelling work in interior area at relatively small job sites!
- Working Range Lines 15m
- Working Range Lines with Laser Receiver 50m
- Working Range Point 5m
- Soft grip components prevent slipping
- Projection and leveling accuracy of +/- 0.2mm @ 1m
- Self-leveling function The instrument levels itself in the range of ± 3°
- Compact – Pocket size for handy usage
- Easy to Use – Simple & easy interface for various measuring functions
- Three-line laser with a cross beam and one vertical side beam
- Vivid line visibility and robust design for maximum work efficiency
Wizard Auto 250 KN - Automatic Compression Testing Machines
Description:
The Bosch GLL 5-50X Professional self-leveling five-line laser level can help with alignment, leveling and squaring needs. Bright laser lines can be used in self-leveling mode or locked in manual mode for sloped applications. The unit features an audio alarm to alert that the tool is out of range in self-leveling mode so you can build with confidence.
- One horizontal line, four vertical lines at 90 to each other – for level, align and squaring applications
- Smart pendulum system – self-levels and indicates out-of-level condition; switch slider to lock for transport
- Five-line selection modes – projects five lines independently or together for a wide array of level/align and squaring application
- Line generator laser level is great for a variety of projects
Features:
- Working Range Lines 15m
- Working Range Lines with Laser Receiver 50m
- Working Range Point 5m
- Soft grip components prevent slipping
- Projection and leveling accuracy of +/- 0.2mm @ 1m
- Self-leveling function The instrument levels itself in the range of ± 3°
- Compact – Pocket size for handy usage
- Easy to Use – Simple & easy interface for various measuring functions
- Three-line laser with a cross beam and one vertical side beam
- Vivid line visibility and robust design for maximum work efficiency
Standards:
- N/A
Specifications:
Specifications of Bosch GLL 5-50X Laser Level
|
Working Range, line |
15m |
|
Working Range, line with Laser Receiver |
50m |
|
Working Range, point |
5m |
|
Levelling Accuracy |
±0.2mm/m |
|
Projection |
5 lines + 1 plumb point |
|
Self-levelling range |
±3° |
|
Laser diode / class |
635 – 650nm / 2 |
|
Tripod thread size |
5/8″ |
|
Operating time, max. |
24h |
|
Dust and splash protection |
IP54 |
|
Batteries |
type AA 4 × 1.5 V |
|
Weight |
720g |
|
Warranty |
One Year Warranty |
Products:
The Bosch GLL 5-50X Professional is positioned as an advanced level 5-line crossline laser level. It is a simple and easy product which has adequate technical specification and a more competitive pricing. It’s the ideal tool for users doing the basic levelling work in interior area at relatively small job sites!
- Working Range Lines 15m
- Working Range Lines with Laser Receiver 50m
- Working Range Point 5m
- Soft grip components prevent slipping
- Projection and leveling accuracy of +/- 0.2mm @ 1m
- Self-leveling function The instrument levels itself in the range of ± 3°
- Compact – Pocket size for handy usage
- Easy to Use – Simple & easy interface for various measuring functions
- Three-line laser with a cross beam and one vertical side beam
- Vivid line visibility and robust design for maximum work efficiency

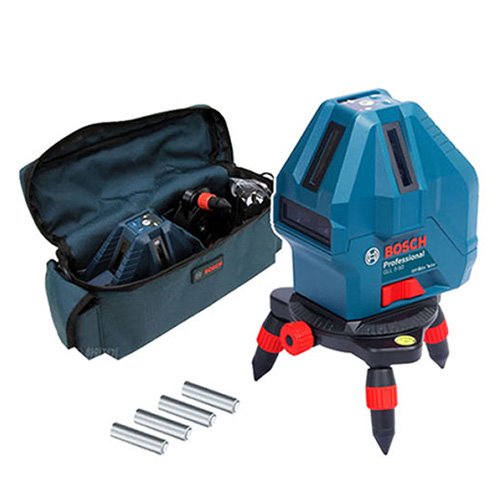

Bosch GLL 5-50X Scope of delivery:
- Bosch GLL 5-50X
- Carrying Pouch
- Tripod Adapter
- 4 x AA Alkaline Batteries
- User Manual
