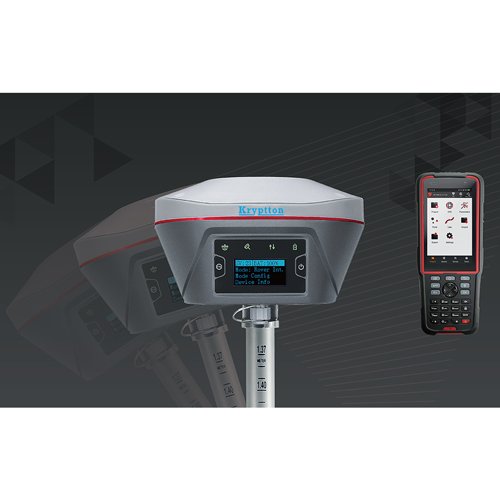

Kryptton GNSS Receiver

Short info :

Kryptton GNSS Receiver empowered by a high precision inertial measurement unit (IMU) on Ultimate version, Kryptton GNSS receiver is a new generation of tilt survey GNSS receiver. This kind of calibration-free tilt compensation is immune to magnetic disturbances. Kryptton GNSS receiver gives a surveyor unprecedented flexibility and efficiency – holding the survey pole upright is no longer necessary. With an internal high-performance multi-constellation and multi-frequency GNSS board, the Kryptton GNSS Receiver can provide high accuracy and stable signal detection.

  • Supports multiple constellations & frequencies: GPS, GLONASS, BeiDou, Galileo, SBAS, QZSS, GAGAN
  • Supports 576 channels
  • 410-470MHz UHF radio, 4G network, Wi-Fi, Bluetooth, NFC
  • Tilt compensation without calibration, immune to magnetic disturbances
  • 16GB/8GB internal storage
  • Up to 16 hours working in 4G/3G/2G network and Rover radio mode
  • IP67-rated dust-& waterproof enclosure, for reliability in harsh environmental conditions

MAKE: KRYPTTON      |       MODEL: GNSS Receiver

Description:

Kryptton GNSS Receiver’s built-in high-performance antenna can speed up the time to first fix (TTFF) and improve anti-jamming performance. With a Nano-SIM card inserted in Kryptton, it can access Internet, transmit and receive correction data through 4G/WiFi network. The built-in UHF radio module supports long distance communication. The built-in large capacity battery is detachable and can display power level. Two batteries support up to 16 hours of fieldwork in 4G/3G/2G network and Rover radio mode. Kryptton GNSS can be easily configured with 1.54 inch interactive screen on Ultimate and Advanced versions. The rugged housing protects the equipment from harsh environments.

The Kryptton TC20 Controller is a rugged smart phone with design of 4.3” touch screen and an alphanumerical keypad. Equipped with powerful processor, it is perfect to adapt with Kryptton Survey software. With professional IP67 rating, it is robust and reliable for harsh operating conditions.
