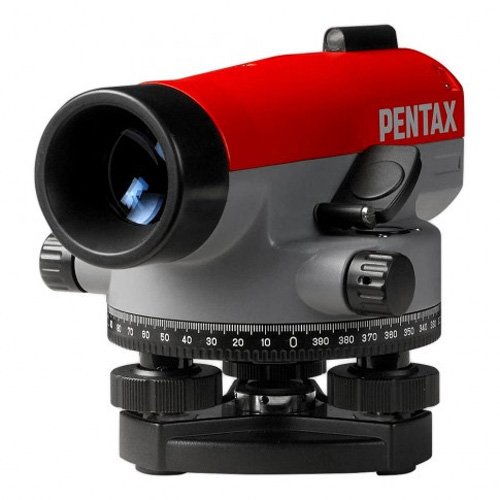

Pentax AP 224 Automatic Optical Level
Short info :
The Pentax AP-224 surveying levels are compact and light, weighing just 2.8 lbs (1.25 kg) each for convenient field use. Rugged, water-resistant construction lets you work in light rain or dusty conditions. Pentax AP Series levels feature a built-in magnetic-dampened automatic compensator to level the line of sight. The compensation working range is ±15′.
- Leveling Accuracy ± 2.0mm
- Telescope Magnification 24x
- Very Short Focusing Distance: 0.3m
- Optimal for close range work
- Robust construction: Metal top cover
- Weather and Dust Resistance: IP55
- An easy-to-read horizontal circle
- Magnetic damped automatic compensator for rapid and accurate results
Wizard Auto 250 KN - Automatic Compression Testing Machines
Description:
The Pentax AP-224 surveying levels are compact and light, weighing just 2.8 lbs (1.25 kg) each for convenient field use. Rugged, water-resistant construction lets you work in light rain or dusty conditions. Pentax AP Series levels feature a built-in magnetic-dampened automatic compensator to level the line of sight. The compensation working range is ±15′.
Features:
- Leveling Accuracy ± 2.0mm
- Telescope Magnification 24x
- Very Short Focusing Distance: 0.3m
- Optimal for close range work
- Robust construction: Metal top cover
- Weather and Dust Resistance: IP55
- An easy-to-read horizontal circle
- Magnetic damped automatic compensator for rapid and accurate results
Standards:
- N/A
Specifications:
|
Telescope |
|
|
Image |
erect |
|
Magnification |
24x |
|
Effective diameter of objective lens |
30mm |
|
Field of view |
1°20&' |
|
Minimum focusing distance |
0.3 m |
|
Resolving Power |
3.5&' |
|
Stadia ratio |
100 |
|
Stadia additive constant |
0 |
|
Accuracy |
|
|
Standard Deviation of 1km double run leveling |
±2.0mm |
|
Standard Deviation |
|
|
(1 km double-run leveling) |
±2.0 mm |
|
Automatic Compensator |
|
|
Type |
Magnetic |
|
Working range |
±15&' |
|
Sensitivity |
8&' / 2mm |
|
Horizontal Circle |
|
|
Minimum division |
1° / 1gon |
|
Reading system |
Total area 400G/360° |
|
Size and Weight |
|
|
Dimensions |
130mm x 140mm x L 200mm |
|
Weight |
1.25 kg |
|
Dust and Water resistance |
IP55 |
Products:
The Pentax AP-224 surveying levels are compact and light, weighing just 2.8 lbs (1.25 kg) each for convenient field use. Rugged, water-resistant construction lets you work in light rain or dusty conditions. Pentax AP Series levels feature a built-in magnetic-dampened automatic compensator to level the line of sight. The compensation working range is ±15′.
- Leveling Accuracy ± 2.0mm
- Telescope Magnification 24x
- Very Short Focusing Distance: 0.3m
- Optimal for close range work
- Robust construction: Metal top cover
- Weather and Dust Resistance: IP55
- An easy-to-read horizontal circle
- Magnetic damped automatic compensator for rapid and accurate results
