Redwood Viscometer These viscometers are designed for viscosity tests of petroleum products which react as Newtonian liquids at the test temperature. They confirm to requirements of IP 70. Two adaptations of Redwood Viscometer are available. No. 1 for liquids having Redwood flow 20 seconds to 2000 seconds and No. 2 for liquids whose flow time with No. 1 exceeds 2000 seconds. The complete outfit comprises stainless steel bath having drain plug with Elect. heating arrangements (suitable to operate at 220 Volts 50 Hz AC Mains) or Gas Heating arrangements with tap, silver plated oil cup with precisions stainless steel jet, ball valve, cover, thermometer clip, stirrer and suitable stand with leveling screws.

Redwood Viscometer These viscometers are designed for viscosity tests of petroleum products which react as Newtonian liquids at the test temperature. They confirm to requirements of IP 70. Two adaptations of Redwood Viscometer are available. No. 1 for liquids having Redwood flow 20 seconds to 2000 seconds and No. 2 for liquids whose flow time with No. 1 exceeds 2000 seconds. The complete outfit comprises stainless steel bath having drain plug with Elect. heating arrangements (suitable to operate at 220 Volts 50 Hz AC Mains) or Gas Heating arrangements with tap, silver plated oil cup with precisions stainless steel jet, ball valve, cover, thermometer clip, stirrer and suitable stand with leveling screws.

• IP 70

Redwood Viscometer These viscometers are designed for viscosity tests of petroleum products which react as Newtonian liquids at the test temperature. They confirm to requirements of IP 70. Two adaptations of Redwood Viscometer are available. No. 1 for liquids having Redwood flow 20 seconds to 2000 seconds and No. 2 for liquids whose flow time with No. 1 exceeds 2000 seconds. The complete outfit comprises stainless steel bath having drain plug with Elect. heating arrangements (suitable to operate at 220 Volts 50 Hz AC Mains) or Gas Heating arrangements with tap, silver plated oil cup with precisions stainless steel jet, ball valve, cover, thermometer clip, stirrer and suitable stand with leveling screws.

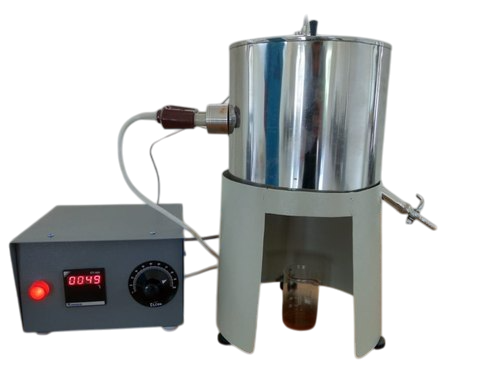

The viscometer consists of a heavily silver-plated brass oil cup with a precision stainless steel jet assembled in a chromium-plated bath fitted with a heating tube or heating element and drain cock. The bath and cup assembly is mounted on a stand with leveling feet. Each unit is supplied complete with silver plated ball valve, sprit level with cover, thermometer clip, and receiver of capacity 50ml.

Suitable for operation on 220V, 50Hz, single-phase, AC supply.
