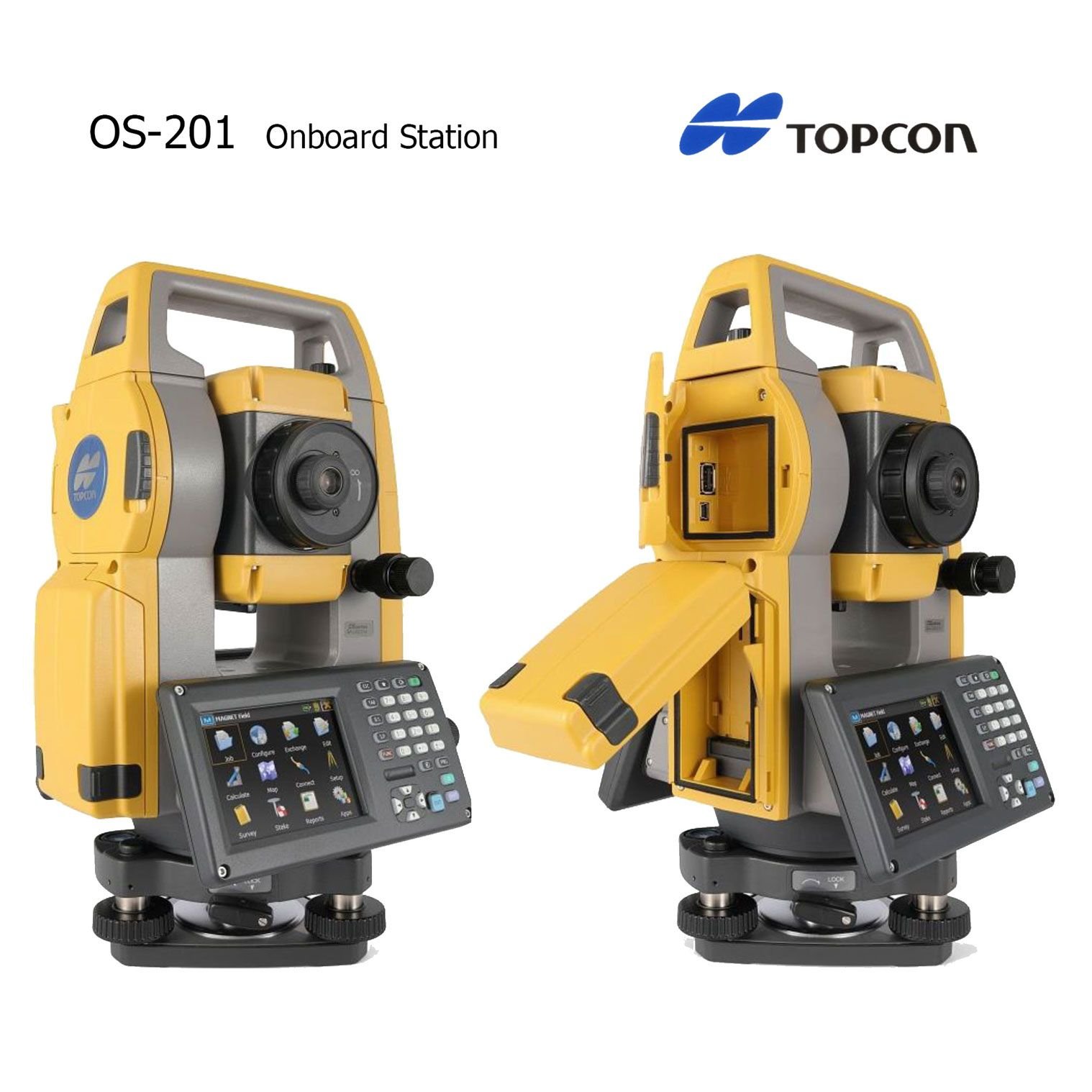

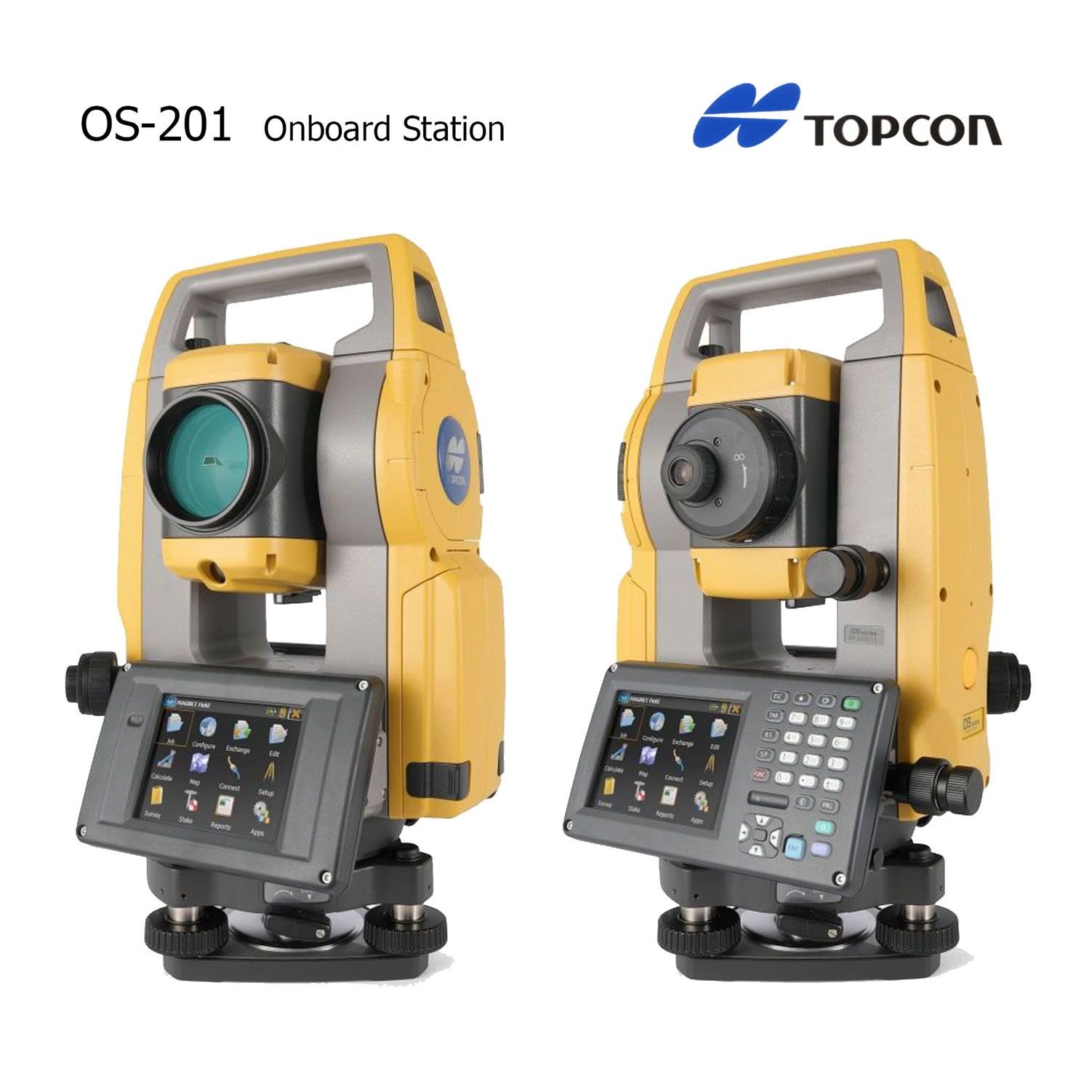

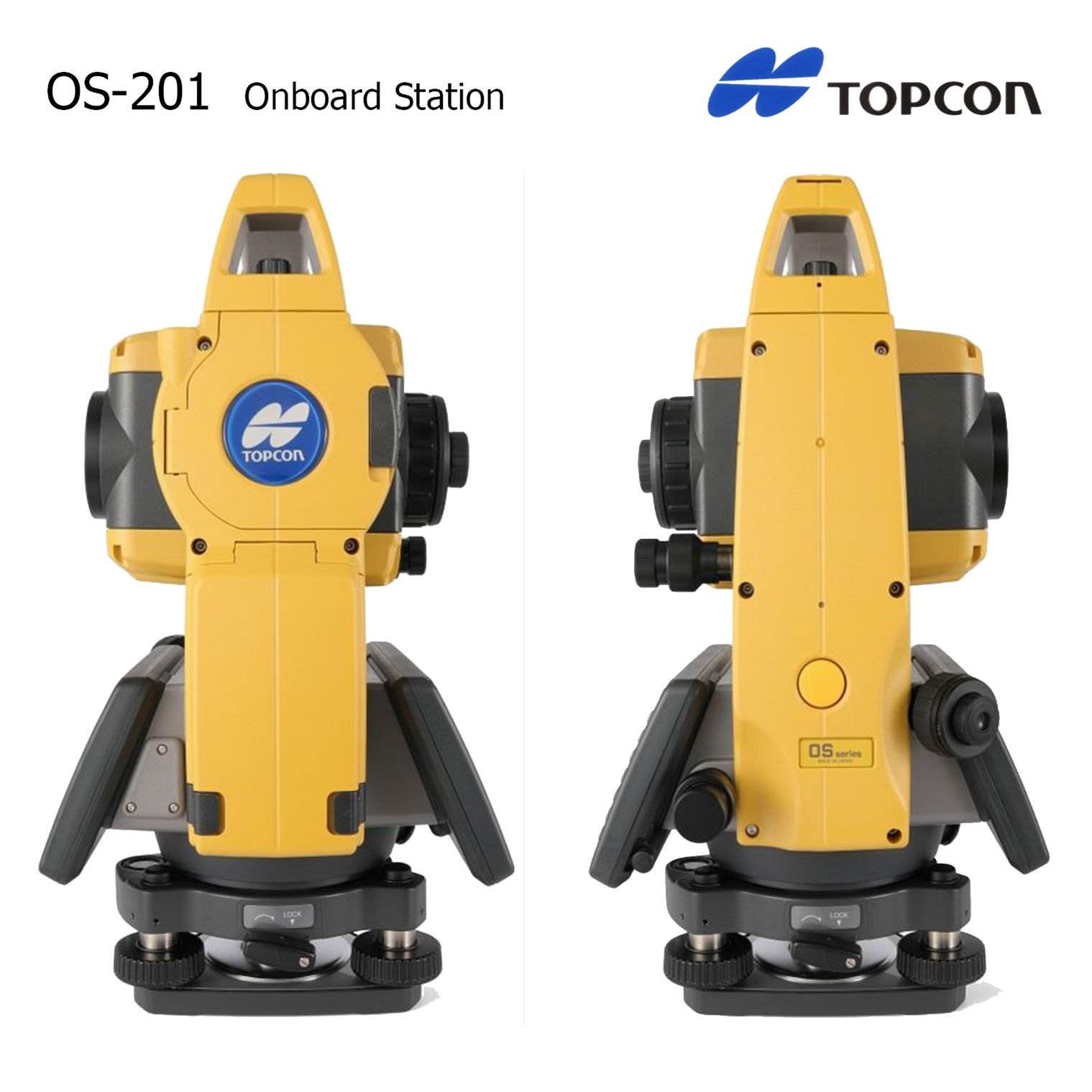

Topcon OS 201 Total Station

Short info :

  • Advanced Security & Maintenance with New TSshield™ for software updates and tracking if your instrument is lost or stolen
  • MAGNET Field On-board
  • Exclusive LongLink™ Communications Functionality – reduce errors by staying at the pole without the need to use radios!
  • Narrow beam ideal for measuring corners, cables and surveying through fences
  • Fast and Powerful EDM (0.9 seconds)
  • Convenient EDM trigger key with minimal disturbance
  • Advanced Angle Accuracy
  • Available in 1, 2, 3 and 5 arc second accuracy models

MAKE: TOPCON      |       MODEL: OS 201

Description:

OS Series

Topcon’s new OS Series Total Stations – New Advanced Design with Superior Technology

The OS is a professional grade compact design total station. This all new advanced design provides an on-board data collection interface, exclusive LongLinkTM communication, and an incredibly powerful EDM.

Work directly on the bright, color touchscreen, or with the alpha-numeric keyboard to achieve higher levels of production with MAGNET Field on-board software.

Features

  • Advanced Security & Maintenance with New TSshield™
  • MAGNET Field On-board
  • Exclusive LongLink™ Communications Functionality
  • Fast and Powerful EDM
  • Advanced Angle Accuracy

The OS is the perfect total station for many field applications including:

• Land Surveying Property
• Land Surveying Topo & Stakeout
• Earthwork Volumes

• Building Interior Layout
• Construction of Roads
• Law Enforcement Mapping



Primary OS features include:

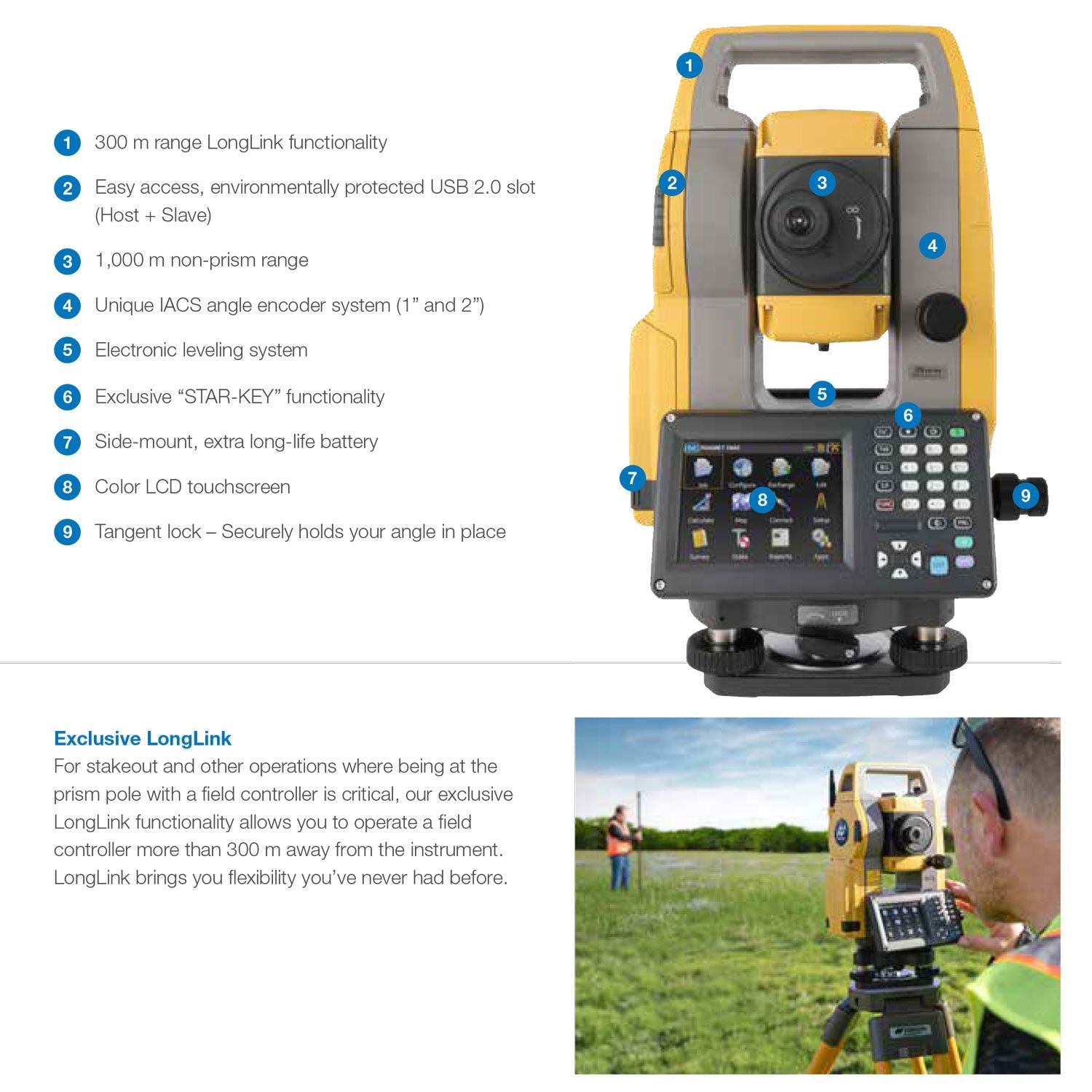

Exclusive LongLinkTM

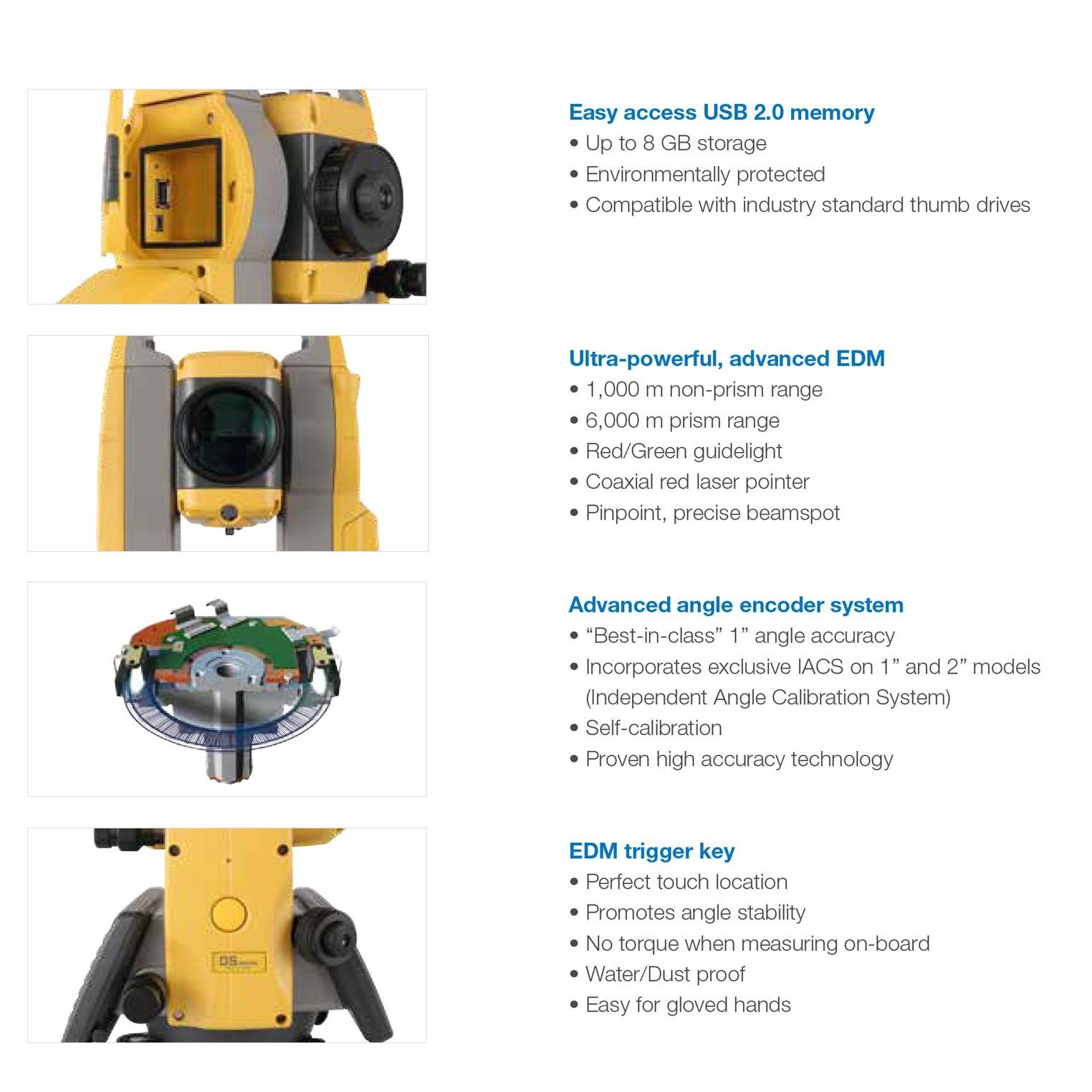

Ultra-Powerful, Advanced EDM

• 300m+ Wireless Link to Controller
• Field Controller at the Prism Pole
• More accurate code descriptions
• Collect point Images at the measurement point.

• 500m non-prism range
• 4000m prism range
• Red/Green Guidelight
• Coaxial red laser pointer
• Pinpoint, precise beamspot


Advanced Angle Encoder System

EDM Trigger Key

• “Best in Class” 1” angle accuracy available
• Incorporates exclusive IACS
(Independent Angle Calibration System)
on 1” & 2” models
• Self calibration
• Proven High Accuracy Technology

• Perfect touch location
• Promotes angle stability
• No torque when measuring on-board
• Water/Dust proof
• Easy for gloved hands


Advanced OS features include:

Standard OS package includes:

• Large Graphics
• Easy to Read
• Color Touchscreen
• Alphanumeric Keyboard
• 4-Way Navigation Button

• OS Total Station
• Battery and Charger (one battery and charger included)
• Lens Cap and Hood
• Tool Kit
• USB stick with digital Manual
• Quick Guide
• Carry Case and Carry Straps

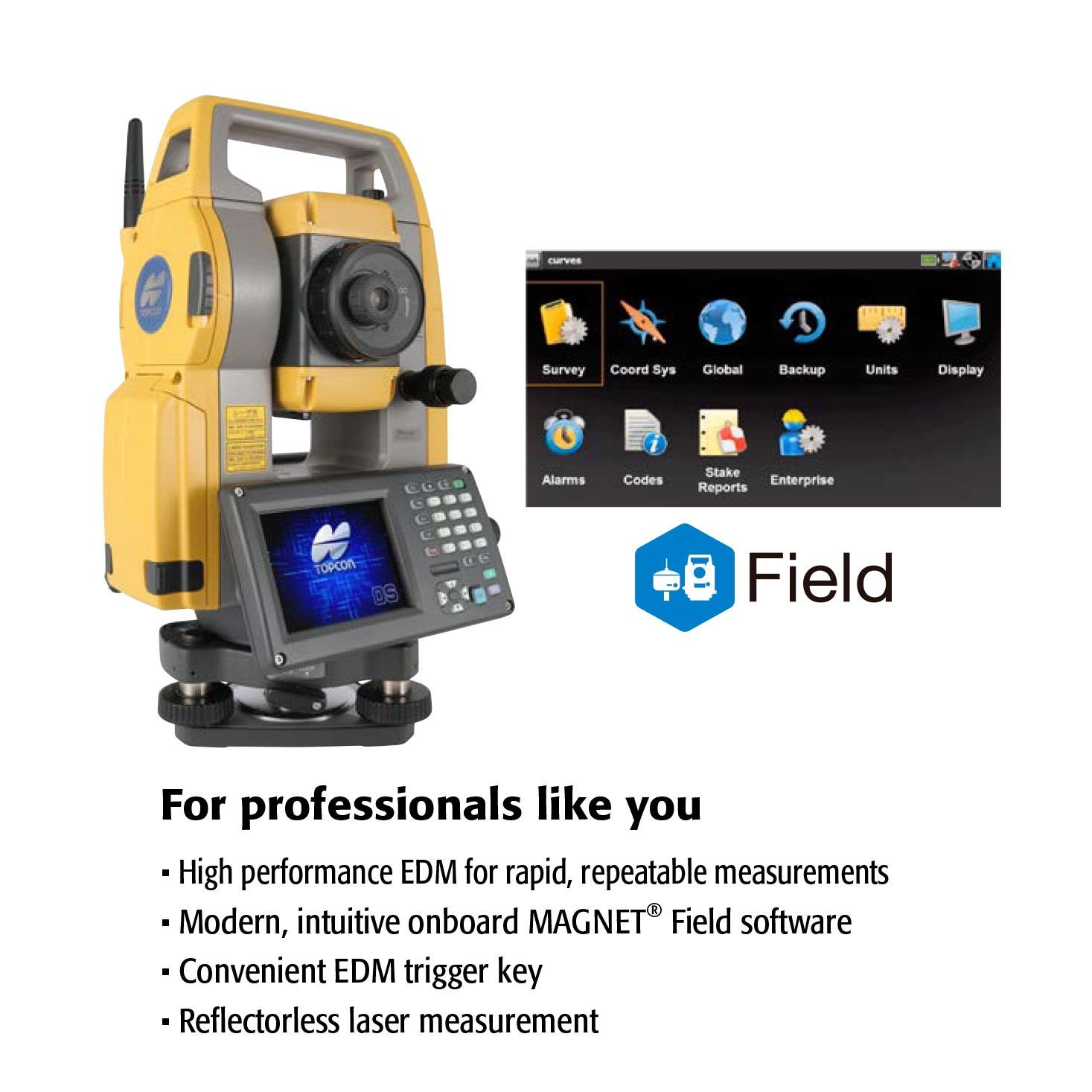

Achieve higher levels of production with MAGNET Field on-board software

Part of the MAGNET Solution, MAGNET Field On-board runs directly on the OS total station touch screen. Utilize the on-board USB port to plug a USB flash drive into the side panel for fast file transfer. Or for more traditional transfer, use a USB mini cable and transfer files to MAGNET Office Tools.

With direct exchange between MAGNET Field On-board and MAGNET Office Tools, you will see an increase in overall productivity.

All of the total station functions are available directly on-board. In Survey, there is Topo, X-Section, Find Station, Tape Dimension, and Missing Line. In Stake, there is Points, Lines, Offsets, Surface, Point in Direction, Curve, Real-Time Roads, Road, Slope, and Linework staking. Plus many calculation functions like Inverse, Intersection, Curves, Area, Corner Angle, Offsets, Adjust, Traverse, and DTM.
