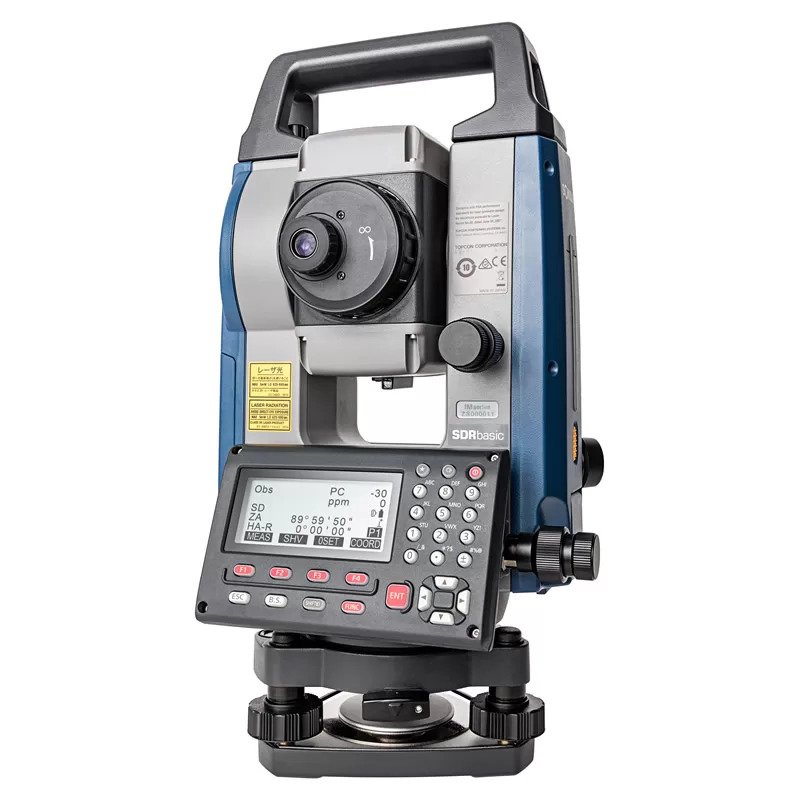

Perfect for entry-level site layout and surveying, the Sokkia iM-55 Reflectorless Total Station is a smart measuring device that offers reliable and accurate results with a friendly price. The Sokkia iM 50 Series Total Station features a reflectorless range up to 1,640 feet and up to 13,123 feet with a single prism. Featuring an advanced angle accuracy, it also comes with an integrated Bluetooth connectivity option and an internal antenna for a cable-free operation.

This Sokkia total station features a coaxial red laser with EDM beam technology and comes with a 30x magnification with 2.5-inch resolving power. It is provided with a ±6-degree range dual-axis compensation that allows reliable measurements on any terrain. Also, it includes an SDRbasic on-board software and a 50,000-point internal memory for a smooth surveying operation.

With an IP66 rating, the Sokkia iM50 is total dust-proof and water resistant. It features a graphic LCD display that has a 28-key alphanumeric keyboard with back-light. In addition, it uses a rechargeable Li-ion battery that operates up to 14 hours which is the best companion for a long work day.

RED-tech Technology Reflectorless EDM

•  5″ Accuracy, Fast distance measurement of 0.9s.
• Smaller EDM beam spot size for minimal distance measuring error..
• Reflectorless measuring distance of upto 500m.
• 50,000 point internal memory
• 32GB pen drive support
• Improved collimation with super-bright pointer
• Fast and accurate pinpointing with phase shift technology
• Ensures accuracy even with reflective sheets.
• IP66 dustproof I waterproof rating.
• Rugged metal chassis and heavy duty handle.
• Standard usage temperature range -20° to 60°C.

• N/A

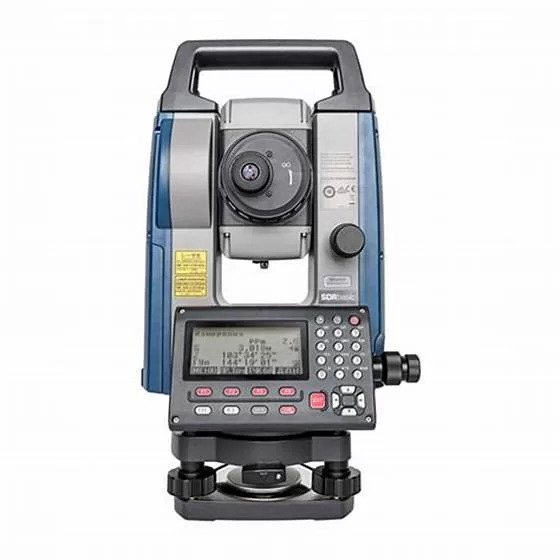

Sokkia iM 55 Total Station (Telescope)

The Sokkia iM 55 Total Station is the perfect entry-level site layout and survey tool offering reliability and flexibility without sacrificing cost or functionality. The Sokkia iM 50 Series Total Station’s sleek design is built tough, with a water and dust-proof IP66 rating, integrated Bluetooth® capability and an internal antenna, enabling you to deliver measurements cable-free to your data controller, streamlining your equipment weight and workflow.

Sokkia iM-55 Reflectorless Total Station is also armed with a top line EDM, generous internal memory storage, and SDRbasic on-board software so you have everything you need to get the job done out in the field.

• 5″ Accuracy, Fast distance measurement of 0.9s..
• Reflectorless operation from 30cm to 500m.
• 50,000-point internal memory
• Upto 32GB USB Pen Drive Support
• Coaxial EDM beam and laser-ponter provide fast and accurate aiming.
• Ensures accuracy even with reflective sheets.
• IP66 dust-proof waterproof rating.
• Rugged metal chassis and heavy duty handle.
• Standard usage temperature range -20° to 60°C.
