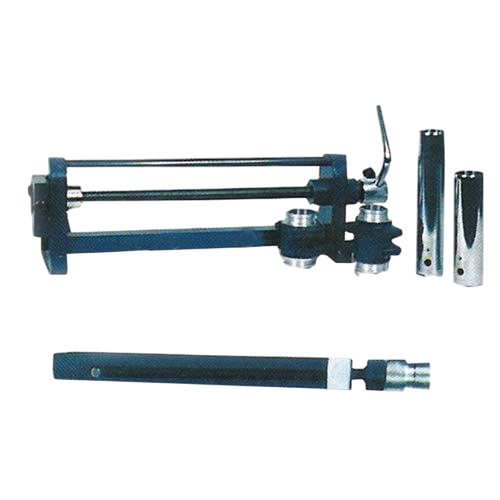

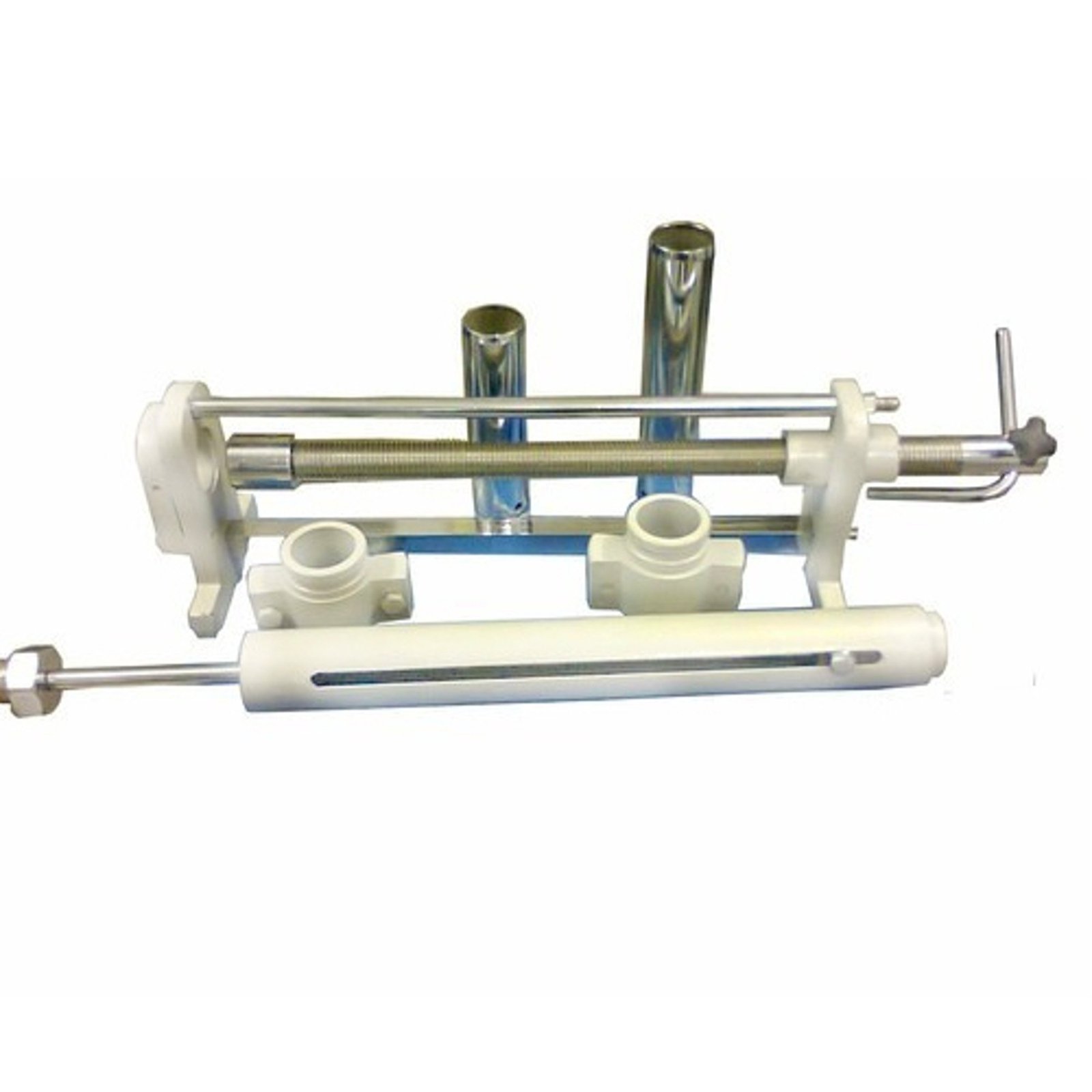

Hand Operated Sample Extractor- 38mm And 50mm Dia
Short info :
Sample Extractors are used for preparing undisturbed specimens from larger samples to carry out strength tests. Large extrusion forces used indiscriminately will compress the soil resulting in false values of shear strength and consolidation. To extract soil sample from 38mm dia thin wall sampling tube on a horizontal position. Fitted with a wire trimmer and a split mould mounting bracket. It is used to extract the undisturbed soil sample from the soil in tube for testing triaxial shear test and UCC test size :38mm dia and 76mm length.
Wizard Auto 250 KN - Automatic Compression Testing Machines
Description:
Extractor frame universal screw-type comprises of a frame designed for screw jack operation, one each of the adaptors for 38mm, 75mm, 100mm, 150mm diameter specimens, and a stand to obtain simultaneously three 38mm dia samples from one 150mm dia sample. Extractor frame universal screw-type adaptor plate which slides along the slotted support can be claimed at any desired position by means of locking nuts. Besides this, the tube or mould can be held in position by raising the tube guides and held in position with locking screws, and lead screw movement can be stopped at any position tightening to the lead screw collar. Plunger adaptor for 200mm dia samples. Adaptor plate with 200mm diameter hole and device to extract b number 38mm dia.
Features:
Soil core specimens can be extracted from sampling tubes with minimum disturbance. Specimens of smaller diameter can also be extracted from larger size samples. It can be mounted vertically or horizontally as desired. It has an unique feature that three 38mm dia sample.
Standards:
- IS: 2070
Specifications:
Comprises of a frame designed for screw jack operation, one each of the adaptors for 38mm, 75mm, 100mm, 150mm dia meter specimens and a stand to obtain simultaneously three 38mm diameter samples from one 100mm diameter sample. The adaptor plate which slides along the slotted support can be claimed at any desired position by means of locking nuts. Besides this, the tube or mould can be held in position by raising the tube guides and held in position with locking screws. The lead screw movement can be stopped at any predetermined position by tightening the lead screw collar. Plunger adaptor for 200mm dia samples. Adaptor plate with 200mm dia hole and device to extract b number 38mm dia samples.
Products:
The outfit comprises one each of the following:
- Sample Extractor, screw type with a wire sample trimmer. Jarring Link, for driving the sampling tube of 38mm dia.
- Adaptor with locking screw, for fitting the 38mm dia sampling tubes to jarring link
- Split Mould, 38mm dia x 88mm long and 38mm dia x 76mm long with quick release clamps.
- Sampling tube unrelieved, 38mm dia x 150mm long and 38mm dia x 200mm long.
